Surge arresters are essential for protecting electrical and electronic equipment from overvoltages. Selecting the appropriate surge arrester and understanding its key parameters ensures optimal protection. ETI ETITEC offers a comprehensive range of high-quality surge arresters to meet various application needs.

002443034

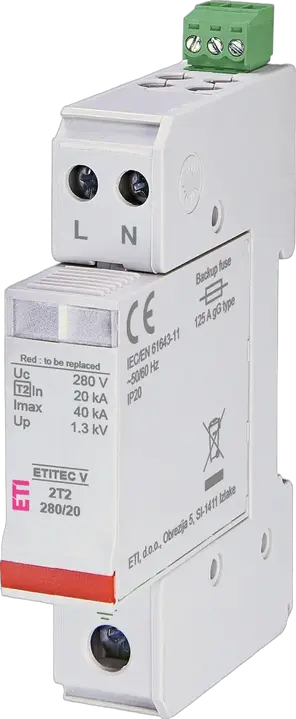

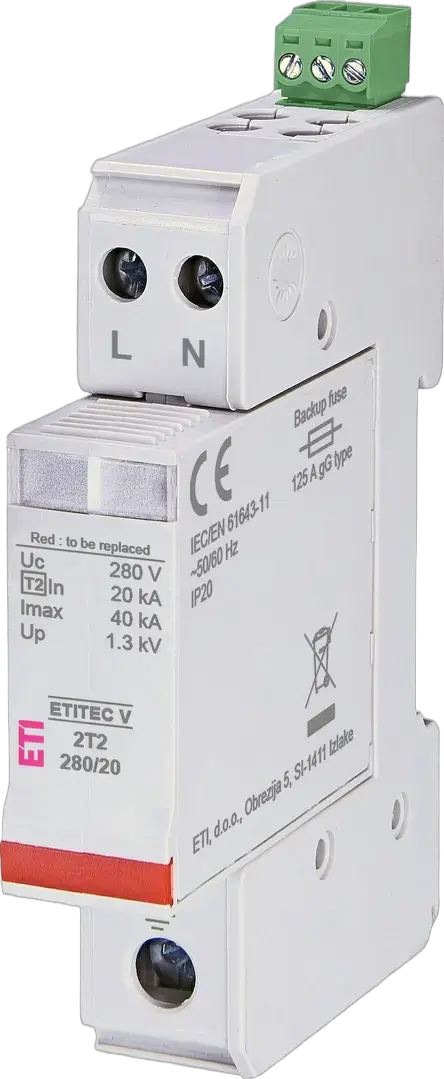

Image of ETITEC V 2T2 280/20 2+0 RC

ETITEC V 2T2 280/20 2+0 RC Surge arrester

ETI Code:: 002443034
Function:: SPD
Surge arrester type:: T2
Uc Continous Operating Voltage AC:: 280 V
Nominal Discharge Current (8/20 μs) In:: 20 kA
Max. Discharge current Imax, 8/20:: 40 kA
Current type:: AC
Remote signalisation:: Yes
Leakage Current:: Yes
Network system:: TN-S
Number of modules:: 1
Built-in depth:: 67 mm
Applied Technology:: MOV
Catalogue Group:: ETITEC V

Product

Net weight of the product: 0.131 kg
Stock unit of measure: pcs

Basic Packaging

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838400177384
Basic packaging weight: 0.131 kg
Basic Packaging Dimensions Height: 70 mm
Basic Packaging Dimensions Width: 20 mm
Basic Packaging Dimensions Depth: 100 mm
Basic packaging volume: 0.14 dm³

Transport Packaging

Intermediate packaging quantity: 8 pcs
EAN code for a intermediate packaging: 3838400177377
Intermediate packaging weight: 1.241 kg
Intermediate Packaging Dimensions Height: 78 mm
Intermediate Packaging Dimensions Width: 105 mm
Intermediate Packaging Dimensions Depth: 183 mm
Transport packaging quantity: 96 pcs
EAN code for a transport packaging: 3838400177360
Transport packaging weight: 15.652 kg
Transport Packaging Dimensions Height: 290 mm
Transport Packaging Dimensions Width: 210 mm
Transport Packaging Dimensions Depth: 460 mm
Transport packaging volume: 28.014 dm³
Pallet quantity: 3,840 pcs
Customs tariff: 85363030
