002471861

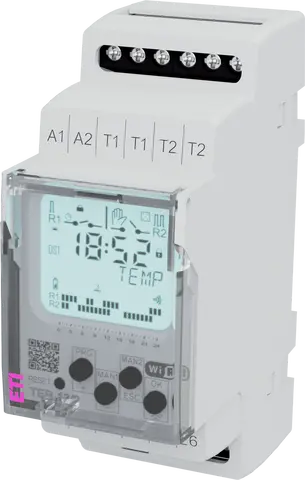

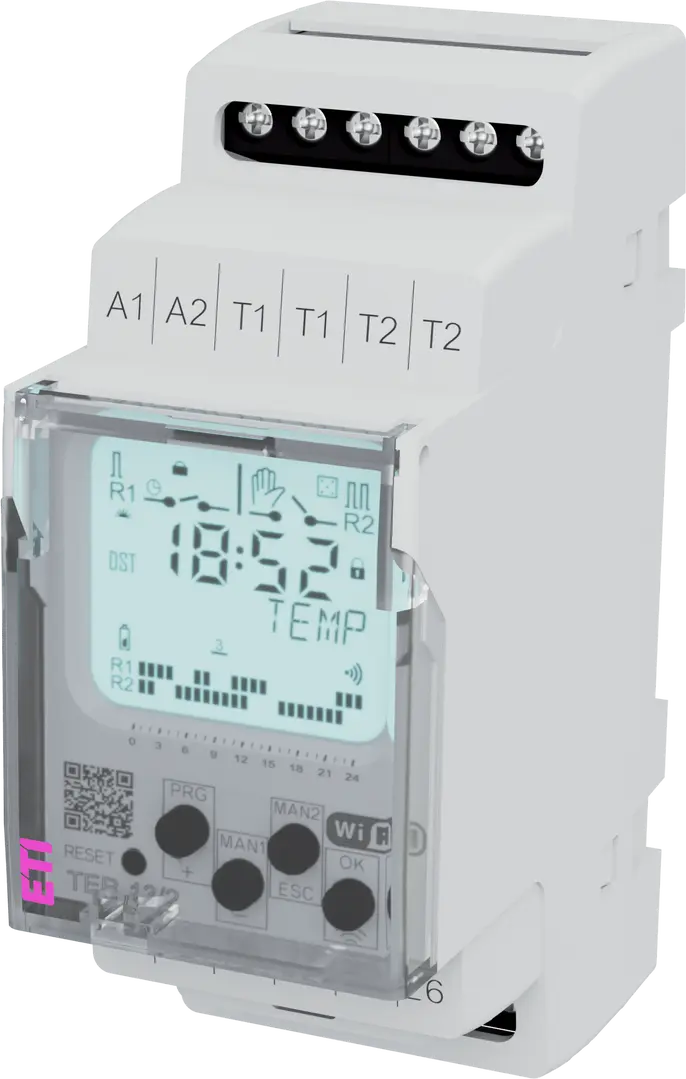

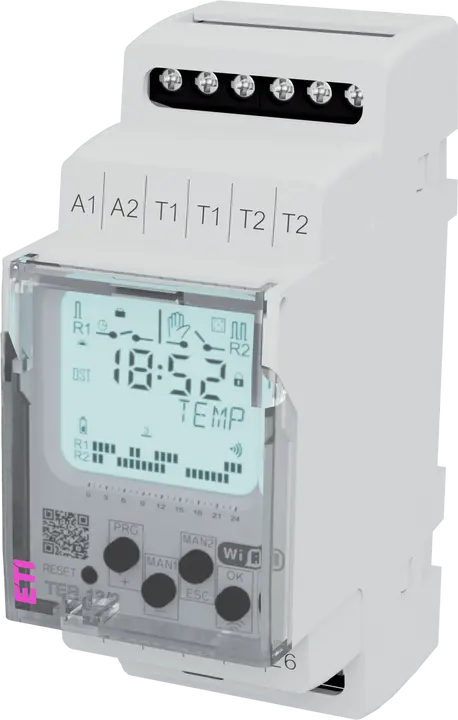

TER-13/2 Control relay
- ETI Code:
- 002471861
- Function:
- Monitoring and Control relays
- Rated current:
- 10 A
- No. of CO contacts:
- 2
- Type of contacts:
- 2xCO
- Number of contacts:
- 2
- Voltage type:
- AC/DC
- Max. load capacity at AC1:
- 2,500 VA
- Sensor type:
- Termistor NTC 12Ω at 25°C
- Temperature range:
- -40-120 °C
- Supply voltage:
- 100-240 V
3 Documents
11 Logistics
Product
- Net weight of the product
- 0.121 kg
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838400183798
- Transport packaging weight
- 0.135 kg
- Transport Packaging Dimensions Height
- 80 mm
- Transport Packaging Dimensions Width
- 95 mm
- Transport Packaging Dimensions Depth
- 60 mm
- Transport packaging volume
- 0.456 dm³
- Pallet quantity
- 2,000 pcs
- Customs tariff
- 85364900
1 ETIM
- Degree of protection (IP)
- IP20
ETIM Classification – Version 9.0
25 Tags
002471861Control relayTER-13/2EVE/ETIRELControl equipmentRelaysRelaysThermostat relayThermostat relayInternationalAutomation, signaling and control devicesThermostats ETIRELType of contacts: 2xCONo. of NC contacts: 0Voltage type: AC/DCNumber of contacts: 2No. of CO contacts: 2Temperature range: -40 °C-120 °CFunction: Monitoring and Control relaysMaximum load capacity at AC1: 2500 VANo. of NO contacts: 0Supply Voltage: 100 V-240 VSensor Type: termistor NTC 12Ω at 25°CRated current: 10 A/10 AControl relay Function: Monitoring and Control relays Supply Voltage: 100 V-240 V Temperature range: -40 °C-120 °C Number of contacts: 2 Rated current: 10 A/10 A Voltage type: AC/DC No. of NC contacts: 0 No. of CO contacts: 2 Type of contacts: 2xCO Maximum load capacity at AC1: 2500 VA No. of NO contacts: 0
