002442980

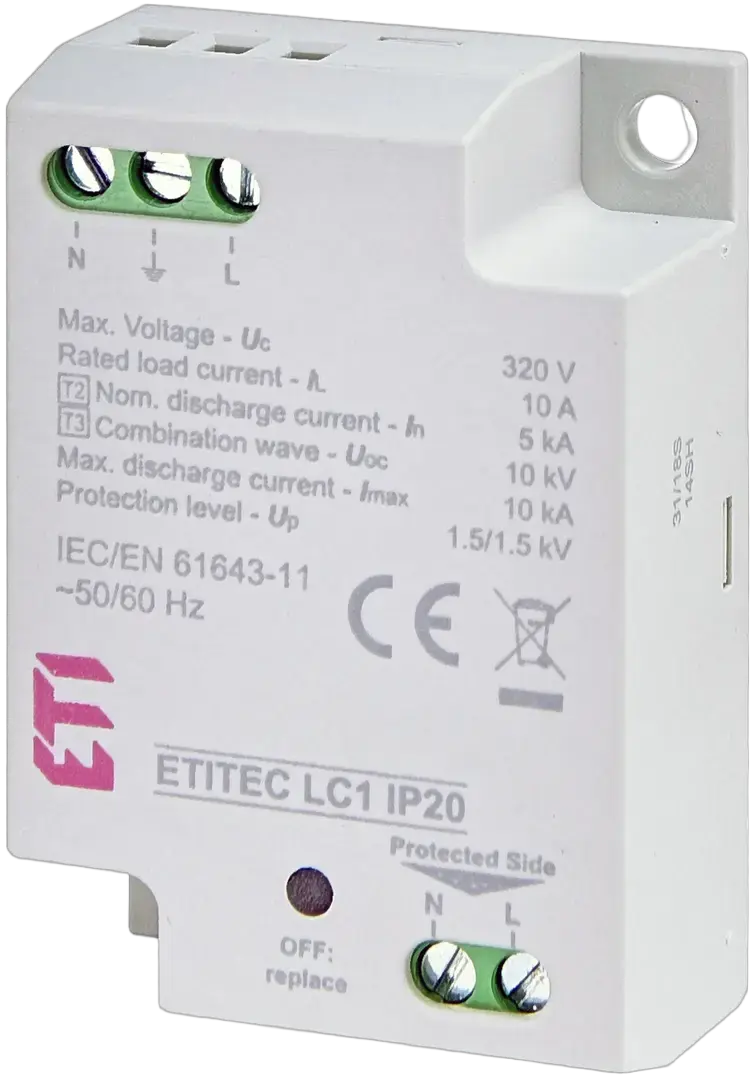

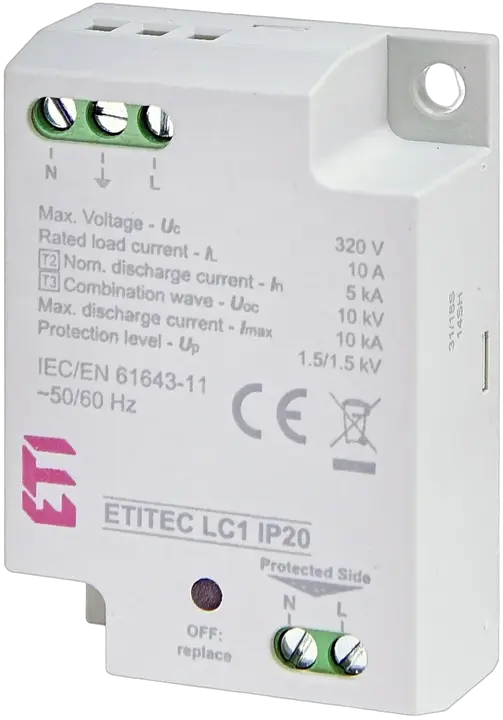

ETITEC LC1 IP20 Surge arrester
- ETI Code:
- 002442980
- Function:
- SPD
- Surge arrester type:
- T2, T3
- Uc Continous Operating Voltage AC:
- 320 V
- Nominal Discharge Current (8/20 μs) In:
- 20 kA
- Current type:
- AC
- Rated AC voltage:
- 230 V
- Up - Voltage Protection Level:
- 1.5 kV
- Leakage Current:
- No
- Network system:
- TT/TN-S
- Installation:
- LED Street lighting protection
- IP rating:
- IP20
- Applied Technology:
- MOV, GDT
- Catalogue Group:
- ETITEC LED
27 Logistics
Product
- Net weight of the product
- 0.035 kg
- Net width
- 40 mm
- Net height
- 59 mm
- Net depth
- 20.89 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895829522
- Basic packaging weight
- 0.046 kg
- Basic Packaging Dimensions Height
- 70 mm
- Basic Packaging Dimensions Width
- 40 mm
- Basic Packaging Dimensions Depth
- 100 mm
- Basic packaging volume
- 0.28 dm³
Transport Packaging
- Intermediate packaging quantity
- 4 pcs
- EAN code for a intermediate packaging
- 3838895859321
- Intermediate packaging weight
- 0.289 kg
- Intermediate Packaging Dimensions Height
- 78 mm
- Intermediate Packaging Dimensions Width
- 105 mm
- Intermediate Packaging Dimensions Depth
- 183 mm
- Transport packaging quantity
- 48 pcs
- EAN code for a transport packaging
- 3838895829539
- Transport packaging weight
- 4.228 kg
- Transport Packaging Dimensions Height
- 290 mm
- Transport Packaging Dimensions Width
- 210 mm
- Transport Packaging Dimensions Depth
- 460 mm
- Transport packaging volume
- 28.014 dm³
- Pallet quantity
- 1,680 pcs
- Customs tariff
- 85363090
15 ETIM
- Max. discharge surge current (8/20)
- 10 kA
- Number of conductors (without earthing)
- 2
- Nominal voltage AC
- 230 V
- Max. conductor cross section solid (solid, stranded)
- 2.5 mm²
- Degree of protection (IP)
- IP20
- Mounting method
- Other
- Construction size
- Other
- Short-circuit breaking capacity (Isccr)
- 10 kA
- System configuration TN-S
- Yes
- Voltage protection level
- 1.5 kV
- System configuration TT
- Yes
- Signalling at the device
- Optical
- Category type 2
- Yes
- Max. continuous voltage AC
- 320 V
- Nominal discharge surge current (8/20)
- 20 kA
ETIM Classification – Version 9.0
