004661452

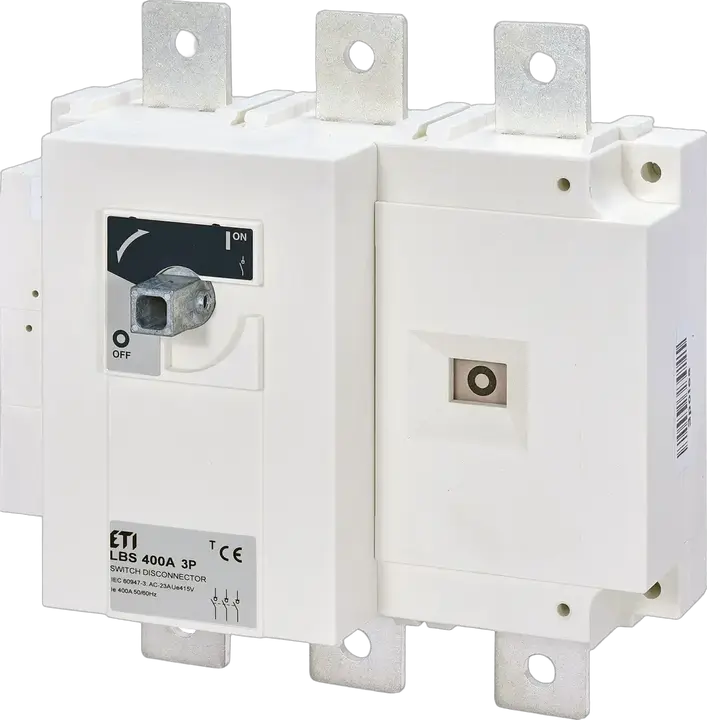

LBS 400 3P Switch disconnector
- ETI Code:
- 004661452
- Rated current:
- 400 A
- Type of Installation:
- Base plate mounting
- Number of poles:
- 3
- Thermal current Ith:
- 400 A
- Rated operational current Ie AC-21 A/B at 415V:
- 400 A
- Rated Insulation Voltage:
- 1,000 V
- Max. rated operational voltage (AC):
- 415 V
- Catalogue Group:
- Load Break Switch LBS
14 Logistics
Product
- Net weight of the product
- 4 kg
- Net width
- 230 mm
- Net height
- 235 mm
- Net depth
- 132.2 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895718857
- Transport packaging weight
- 4 kg
- Transport Packaging Dimensions Height
- 272 mm
- Transport Packaging Dimensions Width
- 305 mm
- Transport Packaging Dimensions Depth
- 157 mm
- Transport packaging volume
- 13.025 dm³
- Pallet quantity
- 50 pcs
- Customs tariff
- 85365080
7 ETIM
- Version as maintenance-/service switch
- Yes
- Suitable for floor mounting
- Yes
- Rated permanent current Iu
- 400 A
- Number of poles
- 3
- Device construction
- Built-in device fixed built-in technique
- Rated operation power at AC-23, 400 V
- 220 kW
- Version as main switch
- Yes
ETIM Classification – Version 9.0
