004661919

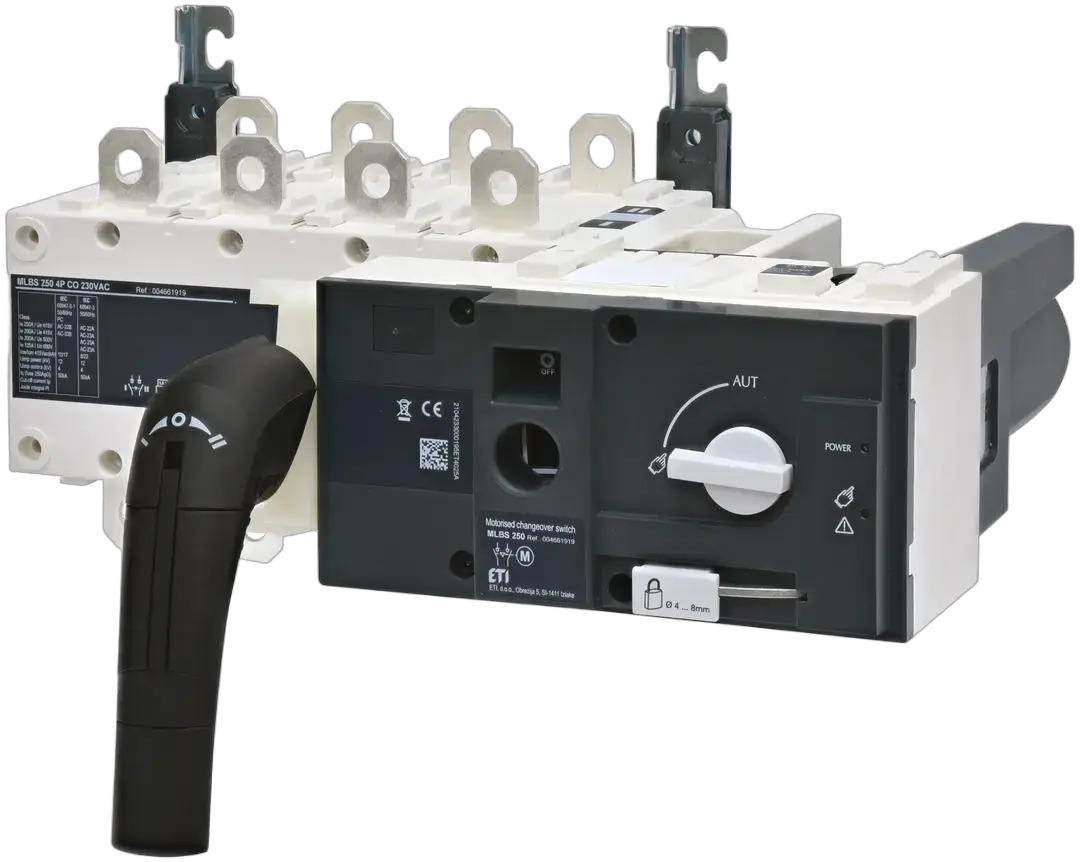

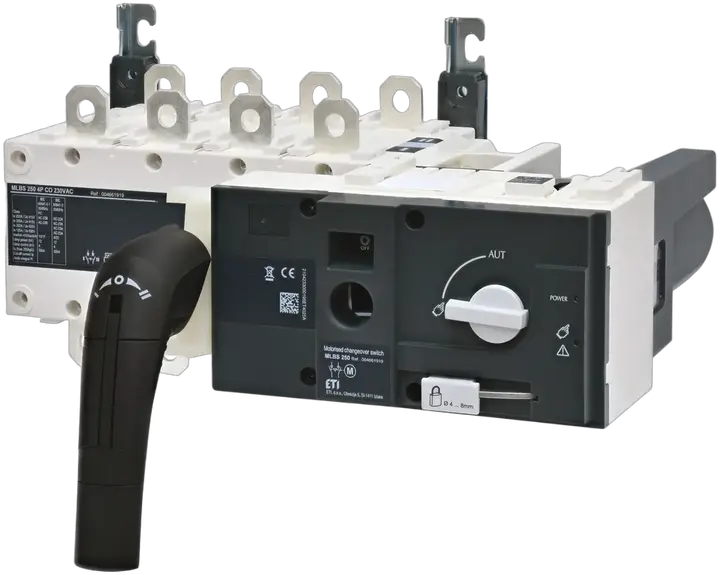

MLBS 250 4P CO 230VAC Changeover switch motor op.
- ETI Code:
- 004661919
- Type of Installation:
- Base plate mounting
- Number of poles:
- 4
- Thermal current Ith:
- 250 A
- Rated operational current Ie AC-21 A/B at 415V:
- 250 A
- Rated Insulation Voltage:
- 1,000 V
- Max. rated operational voltage (AC):
- 690 V
- Control voltage:
- 230VAC
14 Logistics
Product
- Net weight of the product
- 9.72 kg
- Net width
- 383 mm
- Net height
- 229.5 mm
- Net depth
- 265 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895875833
- Transport packaging weight
- 9.72 kg
- Transport Packaging Dimensions Height
- 360 mm
- Transport Packaging Dimensions Width
- 350 mm
- Transport Packaging Dimensions Depth
- 500 mm
- Transport packaging volume
- 63 dm³
- Pallet quantity
- 16 pcs
- Customs tariff
- 85365080
