004667362
Obsolete

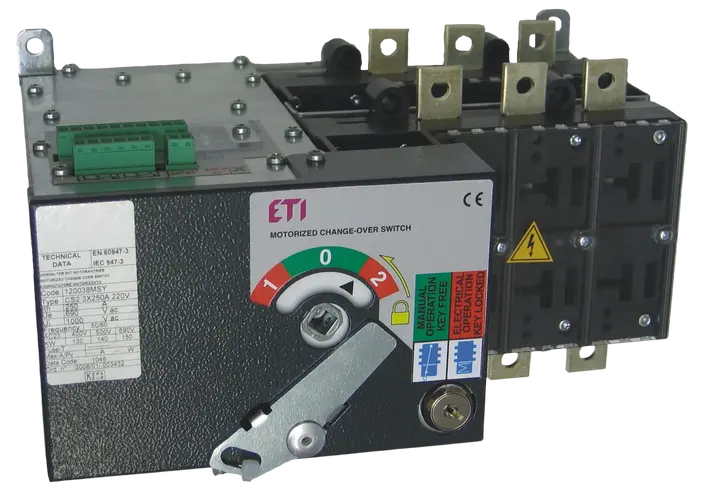

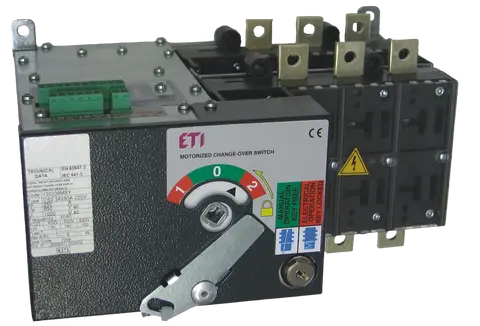

* LA5 MO 2500A 3P CO DUO Changeover switch motor op.
- ETI Code:
- 004667362
- Function:
- Motorized change-over switches (1-0-2)
- Rated current:
- 2500 A
- Type description:
- Motorized
- Number of poles:
- 3
- Catalogue Group:
- LA MO CO
2 Documents
8 Logistics
Product
- Net weight of the product
- 70 kg
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging weight
- 70 kg
- Transport packaging volume
- 190 dm³
- Transport packaging quantity
- 1 pcs
- Customs tariff
- 85365080
- EAN code for a transport packaging
- 3838895476740
- Pallet quantity
- 9 pcs
11 ETIM
- Version as maintenance-/service switch
- Yes
- Max. rated operation voltage Ue AC
- 1,000 V
- Suitable for floor mounting
- Yes
- Rated permanent current Iu
- 2,500 A
- Motor drive integrated
- Yes
- Type of control element
- Other
- Type of electrical connection of main circuit
- Screw connection
- Degree of protection (IP), front side
- IP20
- Number of poles
- 3
- Device construction
- Built-in device fixed built-in technique
- Version as main switch
- Yes
ETIM Classification – Version 9.0
