001692032

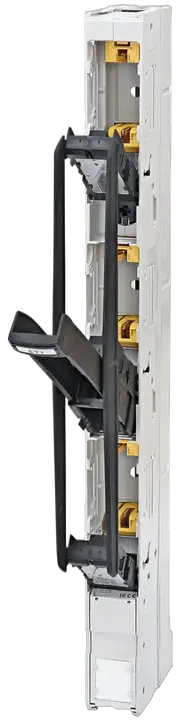

SL00 3P M8 Strip type fuse sw.disconn.
- ETI Code:
- 001692032
- Type of installation:
- Busbar mounting
- Size:
- NH00
- Rated current:
- 160 A
- Number of poles:
- 3
- Rated AC voltage:
- 690 V
- Utilization category:
- AC-23B
- IP rating:
- IP30
14 Logistics
Product
- Net weight of the product
- 2.3 kg
- Net width
- 49.6 mm
- Net height
- 662.3 mm
- Net depth
- 164.68 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 4029155895817
- Transport packaging weight
- 2.149 kg
- Transport Packaging Dimensions Height
- 165 mm
- Transport Packaging Dimensions Width
- 663 mm
- Transport Packaging Dimensions Depth
- 55 mm
- Transport packaging volume
- 6.017 dm³
- Pallet quantity
- 126 pcs
- Customs tariff
- 85389099
12 ETIM
- Max. rated operation voltage Ue AC
- 690 V
- Rated permanent current Iu
- 160 A
- Suitable for fuses
- NH000, NH00
- Type of control element
- Other
- Conditioned rated short-circuit current Iq
- 120 kA
- Cable entry
- Other
- Type of electrical connection of main circuit
- Screw connection
- Degree of protection (IP), front side
- IP30
- Number of poles
- 3
- Rated operation power at AC-23, 400 V
- 110 kW
- Suitable for busbar mounting
- ✓
- Position control element
- Front side
ETIM Classification – Version 9.0
