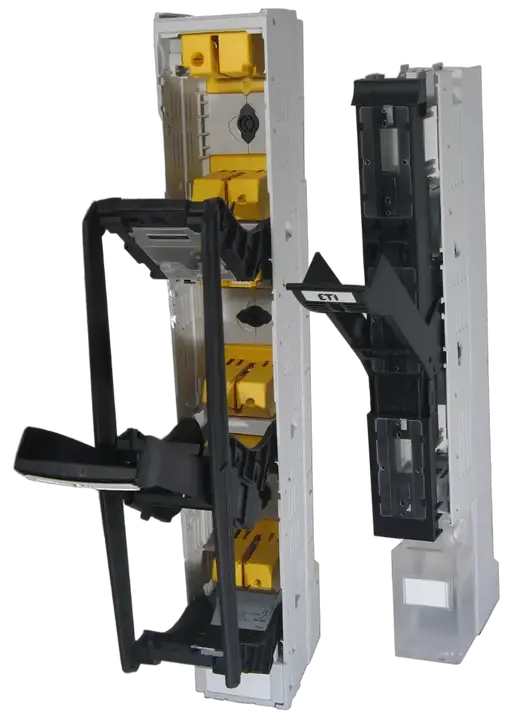

Strip type fuse sw.disconn. SL00/100 3p SP.95 001692036
Specifications
- ETI Code:
- 001692036
- Description:
- SL00/100 3p SP.95
- Class name:
- Strip type fuse sw.disconn.
- Size:
- NH00
- Rated current (A):
- 160
- Number of poles:
- 3
- Rated AC voltage (V):
- 400
- Utilization category:
- AC-22B
- IP rating:
- IP20
- Connection:
- Screw
- Mounting:
- Rail system
- Type:
- 3 pole switching
Documents
Logistic Data
Product
- Net weight of the product
- 1.2 kg
- Customs tariff
- 85363090
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 3838895903895
- Transport packaging weight
- 1.188 kg
- Pallet quantity
- 190
ETIM Clasification
- Classification
- EC001040
- Class name
- Fuse switch disconnector
- Version as main switch
- No
- Version as safety switch
- No
- Max. rated operation voltage Ue AC
- 400V
- Rated permanent current Iu
- 160A
- Rated operation power at AC-23, 400 V
- 110kW
- Conditioned rated short-circuit current Iq
- 80kA
- Suitable for fuses
- NH000, NH00
- Number of poles
- 3
- With error protection
- No
- Type of electrical connection of main circuit
- Screw connection
- Cable entry
- Other
- Equipped with connectors
- No
- Suitable for floor mounting
- No
- Suitable for front mounting
- No
- Suitable for busbar mounting
- Yes
- Type of control element
- Other
- Position control element
- Front side
- Motor drive optional
- No
- Motor drive integrated
- No
- Version as emergency stop installation
- No
- Degree of protection (IP), front side
- IP2X
SL00/100 3p SP.95
