001692332

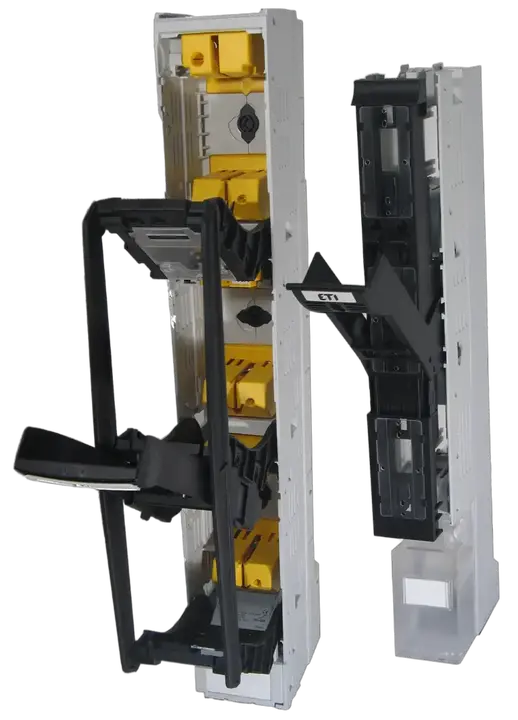

SL3 3P SP.240 Strip type fuse sw.disconn.
- ETI Code:
- 001692332
- Type of installation:
- Busbar mounting
- Size:
- NH3
- Rated current:
- 630 A
- Number of poles:
- 3
- Rated AC voltage:
- 690 V
- Utilization category:
- AC-23B
- IP rating:
- IP30
14 Logistics
Product
- Net weight of the product
- 7.41 kg
- Net width
- 100 mm
- Net height
- 662 mm
- Net depth
- 204.8 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 4029155589006
- Transport packaging weight
- 6.116 kg
- Transport Packaging Dimensions Height
- 205 mm
- Transport Packaging Dimensions Width
- 764 mm
- Transport Packaging Dimensions Depth
- 100 mm
- Transport packaging volume
- 15.662 dm³
- Pallet quantity
- 50 pcs
- Customs tariff
- 85389099
12 ETIM
- Max. rated operation voltage Ue AC
- 690 V
- Rated permanent current Iu
- 630 A
- Suitable for fuses
- NH1
- Type of control element
- Other
- Conditioned rated short-circuit current Iq
- 120 kA
- Cable entry
- Other
- Type of electrical connection of main circuit
- Frame clamp
- Degree of protection (IP), front side
- IP30
- Number of poles
- 3
- Rated operation power at AC-23, 400 V
- 436 kW
- Suitable for busbar mounting
- ✓
- Position control element
- Front side
ETIM Classification – Version 9.0
1 Diagrams
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
19 Tags
001692332Strip type fuse sw.disconn.SL3 3P SP.240NV/NHStrip type fuse-switch-disconnectorsSLSLThree-pole switching-inThree-pole switching-inInternationalFuse links NHStrip type fuse disconnectors NHSize: NH3Number of poles: 3IP rating: IP30Rated AC voltage: 690 V/690 VUtilization category: AC-23BRated current: 630 A/630 AStrip type fuse sw.disconn. Size: NH3 Rated current: 630 A/630 A Number of poles: 3 Rated AC voltage: 690 V/690 V Utilization category: AC-23B IP rating: IP30
