001696014

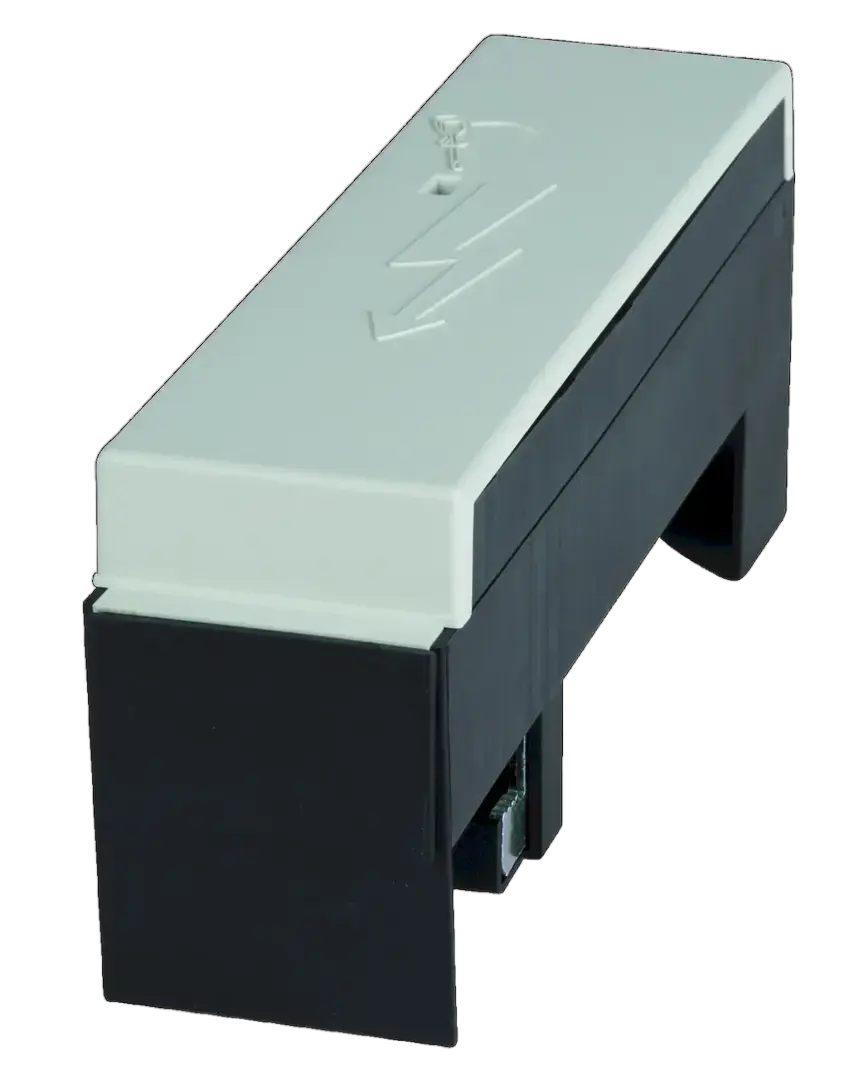

CM-60/250/4 Connection adapter
- ETI Code:
- 001696014
- Function:
- Connecting module
- Rated current:
- 250 A
- Number of poles:
- 4
- Rated cross section:
- 1.5-70 mm²
11 Logistics
Product
- Net weight of the product
- 0.704 kg
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895738596
- Transport packaging weight
- 0.822 kg
- Transport Packaging Dimensions Height
- 165 mm
- Transport Packaging Dimensions Width
- 315 mm
- Transport Packaging Dimensions Depth
- 77 mm
- Transport packaging volume
- 4.002 dm³
- Pallet quantity
- 168 pcs
- Customs tariff
- 85369010
1 ETIM
- Type of accessory/spare part
- Other
ETIM Classification – Version 9.0
