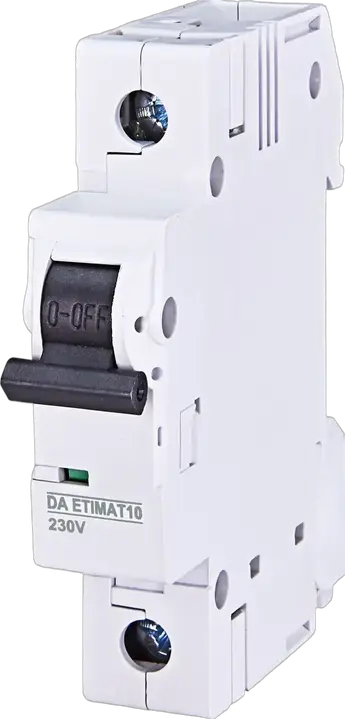

Shunt trip release DA ETIMAT 10 230V AC/DC 002159301

Specifications

ETI Code:
002159301
Description:
DA ETIMAT 10 230V AC/DC
Class name:
Shunt trip release
Function:
Shunt trip release
Rated Frequency (Hz):
50/60
Terminals (mm2):
1-25
Standards:
EN 60715
For use with:
ETIMAT 6
Max. inrush current (A):
3,6

Documents

Product

EAN code for a single product
3838895308553
Net weight of the product
0.103 kg
Customs tariff
85389099

Basic packaging

Basic packaging quantity
1
EAN code for a basic packaging
3838895308553
Basic packaging weight
0.103 kg
Basic packaging volume
0.1

Transport packaging

Transport packaging quantity
54
EAN code for a transport packaging
3838895308560
Transport packaging weight
6.062 kg
Transport packaging volume
19.05
Pallet quantity
2808
Pallet volume
990.6
Classification
EC001023
Class name
Shunt release (for power circuit breaker)
Rated control supply voltage Us at AC 50HZ
230…230V
Rated control supply voltage Us at DC
230…230V
Type of electric connection
Screw connection
Voltage type for actuating
AC/DC
ETIM Classification – Version 7.0

Images & Diagrams

Software & drivers

Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
002159301Shunt trip release, DA ETIMAT 10 230V AC/DCASTIMCBETIMAT 6NormalAccessoriesAccessoriesModular current and residual protective devicesMiniature circuit breakers MCB and accessoriesAccessoriesDA ETIMAT 10 230Function Shunt trip releaseTo use with ETIMAT 6Rated voltage 230VFor use with ETIMAT 6Function accessories Shunt trip releaseCatalogue Group Accessories ETIMAT 6 10Rated Frequency 50Hz 60HzStandards EN 60715DC rated control supply voltage Uc 230VTerminals 1-25Max. inrush current 3,6AShunt trip release DA
