004656837

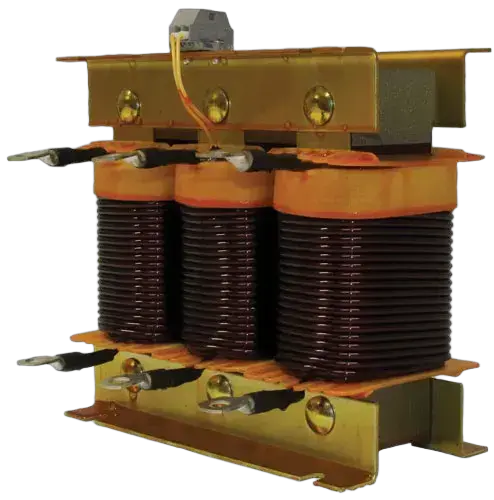

HFL 5,67/25 Al Detuning reactor
- ETI Code:
- 004656837
- Type description:
- aluminum wire
- Filtering factor:
- 0.057 %
- Reactive power:
- 25 kVAr
3 Documents
11 Logistics
Product
- Net weight of the product
- 16.3 kg
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895739524
- Transport packaging weight
- 16.3 kg
- Transport Packaging Dimensions Height
- 220 mm
- Transport Packaging Dimensions Width
- 110 mm
- Transport Packaging Dimensions Depth
- 240 mm
- Transport packaging volume
- 5.808 dm³
- Pallet quantity
- 172 pcs
- Customs tariff
- 85049013
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
16 Tags
004656837Detuning reactorHFL 5,67/25 AlCPThree-phase harmonic filtersThree-phase harmonic filtersThree-phase harmonic filtersFiltering factor 5,67%AlInternationalReactive power compensation devices CPDetuning reactorsFiltering factor: 0.0567Type description: aluminum wireReactive power: 25Detuning reactor Type description: aluminum wire Filtering factor: 0.0567
