004656807

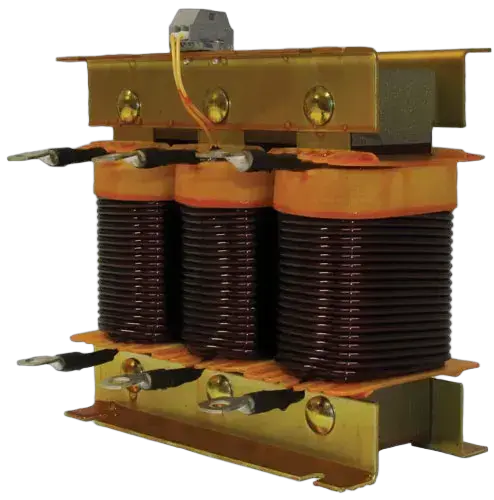

HFL 7/40 Cu Detuning reactor
- ETI Code:
- 004656807
- Rated AC voltage:
- 400 V
- Rated DC voltage:
- 400 V
- IP rating:
- IP00
- Type description:
- copper wire
- Rated current:
- 57.7 A
- Filtering factor:
- 0.07 %
- Inductance:
- 960 μH
- Thermal protection (°C) NC contact:
- 90 °C
- Reactive power:
- 40 kVAr
- Heat insulation:
- F (155°C)
5 Documents
14 Logistics
Product
- Net weight of the product
- 28.5 kg
- Net width
- 300 mm
- Net height
- 287 mm
- Net depth
- 125.5 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895697817
- Transport packaging weight
- 28.5 kg
- Transport Packaging Dimensions Height
- 270 mm
- Transport Packaging Dimensions Width
- 120 mm
- Transport Packaging Dimensions Depth
- 300 mm
- Transport packaging volume
- 9.72 dm³
- Pallet quantity
- 102 pcs
- Customs tariff
- 85049013
7 ETIM
- Degree of protection (IP)
- IP00
- Suitable as interference suppression reactance coil
- Yes
- Number of poles, primary side
- 3
- Max. rated operation voltage Ue
- 400 V
- Resonance frequency
- 189 Hz
- Rated operating frequency(Min)
- 50 Hz
- Rated operating frequency(Max)
- 50 Hz
ETIM Classification – Version 9.0
