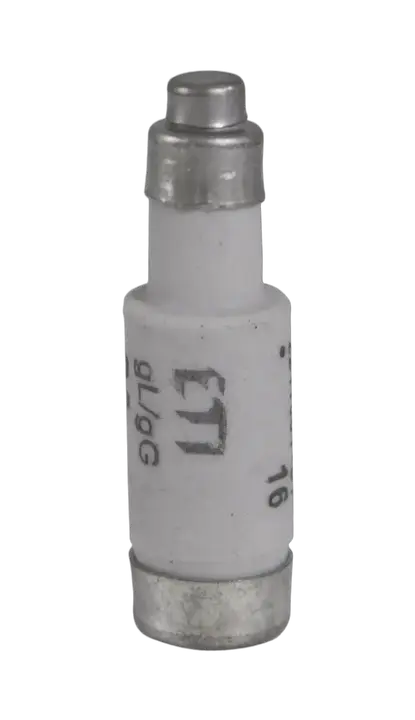

Fuse link D01 gG 10A/400V 002211004

Specifications

ETI Code:
002211004
Description:
D01 gG 10A/400V
Class name:
Fuse link
Rated current (A):
10
Size:
D01
Type:
D0
Rated AC voltage (V):
400
Rated DC voltage (V):
250
Characteristics:
gG
Breaking capacity AC (kA):
50
Breaking capacity DC (kA):
8
Application:
For cable protection
Dimensions:
E14
Indicator:
Top fuse status indicator
Power dissipation (W):
1,3
Standards:
DIN EN 60269-1, DIN EN 60269-3

Documents

Product

EAN code for a single product
3838895905653
Net weight of the product
6.6 g
Customs tariff
85361010

Basic packaging

Basic packaging quantity
10
EAN code for a basic packaging
3838895000518
Basic packaging weight
0.07 kg
Basic packaging volume
0.046

Transport packaging

Transport packaging quantity
500
EAN code for a transport packaging
3838895162469
Transport packaging weight
3.75 kg
Transport packaging volume
3.386
Pallet quantity
85000
Pallet volume
575.62
Classification
EC001642
Class name
D0-system fuse link
Colour code
Red
Construction size
D01
Rated current
10A
Rated voltage
400V
Utilization category
gL/gG (cable protection/equipment protection)
ETIM Classification – Version 7.0
