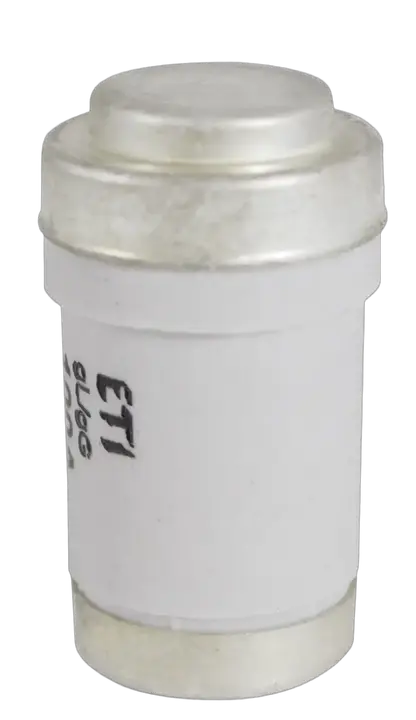

Fuse link D03 gG 80A/400V 002213001

Specifications

ETI Code:
002213001
Description:
D03 gG 80A/400V
Class name:
Fuse link
efuse:
1
Rated current (A):
80
Size:
D03
Type:
D0
Rated AC voltage (V):
400
Rated DC voltage (V):
250
Characteristics:
gG
Breaking capacity AC (kA):
50
Breaking capacity DC (kA):
8
Application:
For cable protection
Dimensions:
M30X2
Indicator:
Top fuse status indicator
Power dissipation (W):
5,3
Operating joule integral (A2s):
34.560
Prearcing joule integral (A2s):
12.960
Standards:
DIN EN 60269-1, DIN EN 60269-3

Documents

Product

EAN code for a single product
3838400029850
Net weight of the product
37  g
Customs tariff
85361090
logis_net_width
23  mm
logis_net_height
23  mm
logis_net_depth
43  mm

Level 1 Packaging

Basic packaging quantity
10
EAN code for a basic packaging
3838895137351
Basic packaging weight
0.365  kg

Level 2 Packaging

Transport packaging quantity
400
EAN code for a transport packaging
3838895163541
Transport packaging weight
14.9  kg
Pallet quantity
20800
Classification
EC001642
Class name
D0-system fuse link
Breaking capacity
50
Type of fuse status indicator
Top fuse status indicator
Application
For cable protection
Max. rated operation voltage Ue AC
400
Rated voltage DC
250
Construction size
D03
Rated current
80A
Rated voltage
400V
Colour code
Silver
ETIM Classification – Version 7.0
