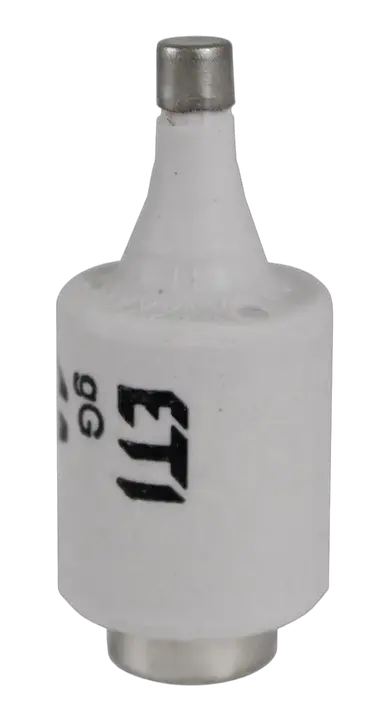

Fuse link DII DZ/gF 6A/500V 002312103

Specifications

ETI Code:
002312103
Description:
DII DZ/gF 6A/500V
Class name:
Fuse link
Type:
D
Size:
DII
Rated current (A):
6
Rated AC voltage (V):
500
Rated DC voltage (V):
250
Characteristics:
DZ
Breaking capacity AC (kA):
50
Breaking capacity DC (kA):
8
Dimensions:
E27
Indicator:
Top fuse status indicator
Power dissipation (W):
2,2
Standards:
DIN EN 60269-1, DIN EN 60269-3

Documents

Product

EAN code for a single product
3838895905950
Net weight of the product
25 g
Customs tariff
85361010

Basic packaging

Basic packaging quantity
5
EAN code for a basic packaging
3838895000112
Basic packaging weight
0.13 kg
Basic packaging volume
0.138

Transport packaging

Transport packaging quantity
500
EAN code for a transport packaging
3838895163312
Transport packaging weight
13.5 kg
Transport packaging volume
17.4
Pallet quantity
26000
Pallet volume
904.8
Classification
EC000099
Class name
D-system fuse link
Colour code
Green
Construction size
DII
Nominal rated current
6A
Nominal rated voltage
500V
Release characteristic
Fast (F)
Utilization category
Other
ETIM Classification – Version 7.0

Images & Diagrams

Software & drivers

Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
002312103Fuse link, DII DZ/gF 6A/500VDLow voltage fuse-linksFuse-link DDIIDZDZFuse links D, D0, CD fuse linksDII DZ/GF 6A/500Tripping characteristic Fast (F)Rated current 6AType DRated voltage 500VSize DIIProduct group D Low voltage FusesCharacteristics DZRated AC voltage 500VRated DC voltage 250VDimensions E27Indicator Top fuse status indicatorBreaking capacity AC 50kABreaking capacity DC 8kAPower dissipation 2,2WCatalogue Group D Low voltage FusesStandards DIN EN 60269-1, DIN EN 60269-3Application For cable protectionFuse link DII D DII 6A 500V 250V DZ
