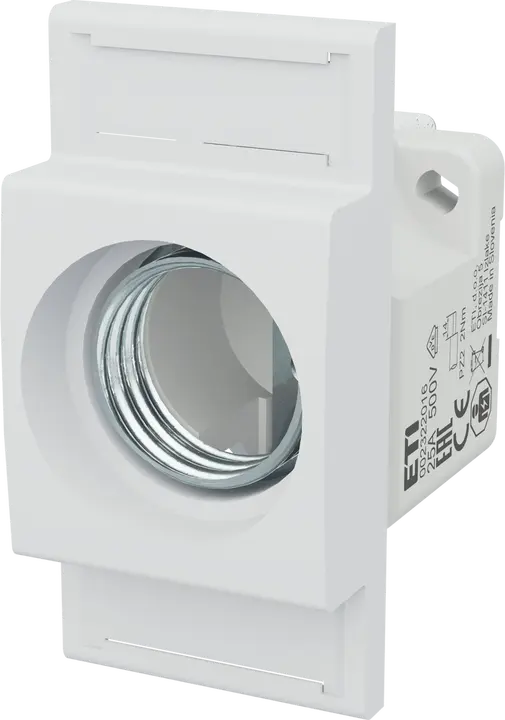

DII E27 25A EZN 1p+ZP Fuse - base
- ETI Code:
- 002322016
- Rated DC voltage:
- 500 V
- Standards:
- IEC60269
- Catalogue Group:
- LV-fuse base
- To use with:
- D fuse-links
- Application:
- Residential and industrial installation
- Product group:
- LV-fuse base
- Type description:
- EZN
- Size:
- DII
- Number of poles:
- 1
- Rated current:
- 25 A
- Rated AC voltage:
- 500 V
- Type of Installation:
- DIN rail
22 Logistics
Product
- Net depth
- 62 mm
- Net weight of the product
- 128 g
- Net width
- 40 mm
- Net height
- 80 mm
- Stock unit of measure
- pcs
- EAN code for a single product
- 3838895906179
Basic Packaging
- EAN code for a basic packaging
- 3838895002116
- Basic packaging weight
- 1.39 kg
- Basic Packaging Dimensions Depth
- 0.22 m
- Basic Packaging Dimensions Height
- 0.06 m
- Basic packaging volume
- 0.003 m³
- Basic Packaging Dimensions Width
- 0.225 m
- Basic packaging quantity
- 10 pcs
Transport Packaging
- Transport packaging weight
- 10.185 kg
- Transport packaging volume
- 0.035 m³
- Transport packaging quantity
- 70 pcs
- Customs tariff
- 85389099
- Transport Packaging Dimensions Height
- 0.285 m
- Transport Packaging Dimensions Width
- 0.343 m
- Transport Packaging Dimensions Depth
- 0.363 m
- EAN code for a transport packaging
- 3838895717133
- Pallet quantity
- 1,680 pcs
7 ETIM
- Model
- Fitted screw
- Construction size
- DII
- Version with cover
- Yes
- Number of poles
- 1
- Rated voltage
- 500 V
- Rated current
- 25 A
- Material
- Porcelain
