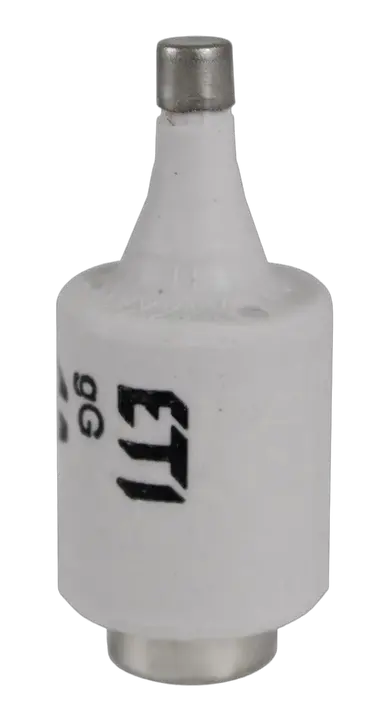

Fuse link DII gG 2A/500V 002312401

Specifications

ETI Code:
002312401
Description:
DII gG 2A/500V
Class name:
Fuse link
efuse:
1
Type:
D
Size:
DII
Rated current (A):
2
Rated AC voltage (V):
500
Rated DC voltage (V):
250
Characteristics:
gG
Breaking capacity AC (kA):
50
Breaking capacity DC (kA):
8
Dimensions:
E27
Indicator:
Top fuse status indicator
Power dissipation (W):
2,6
Standards:
DIN EN 60269-1, DIN EN 60269-3

Documents

Product

EAN code for a single product
3838895906025
Net weight of the product
24  g
Customs tariff
85361010
logis_net_width
22  mm
logis_net_height
22  mm
logis_net_depth
50  mm

Basic packaging

Basic packaging quantity
5
EAN code for a basic packaging
3838895000013
Basic packaging weight
0.13  kg

Transport packaging

Transport packaging quantity
500
EAN code for a transport packaging
3838895163480
Transport packaging weight
13.5  kg
Pallet quantity
26000
Classification
EC000099
Class name
D-system fuse link
Type of fuse status indicator
Top fuse status indicator
Max. rated operation voltage Ue AC
500
Rated voltage DC
250
Breaking capacity
50
Construction size
DII
Rated current
2A
Rated voltage
500V
Colour code
Pink
Utilization category
Other
Release characteristic
Time-lag (T)
