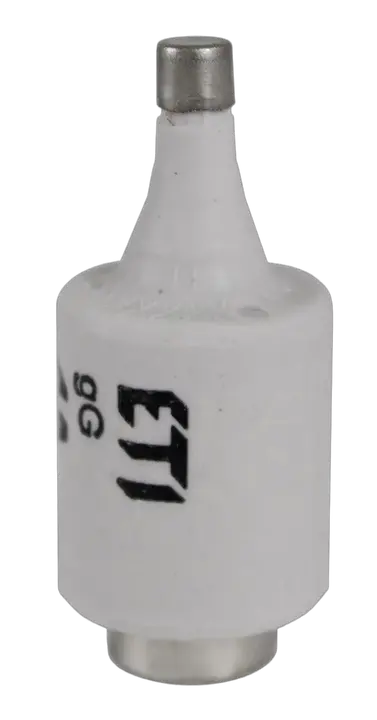

Fuse link DII gG 25A/500V 002312407

Specifications

ETI Code:
002312407
Description:
DII gG 25A/500V
Class name:
Fuse link
Type:
D
Size:
DII
Rated current (A):
25
Rated AC voltage (V):
500
Rated DC voltage (V):
250
Characteristics:
gG
Breaking capacity AC (kA):
50
Breaking capacity DC (kA):
8
Dimensions:
E27
Indicator:
Top fuse status indicator
Power dissipation (W):
3,30
Standards:
DIN EN 60269-1, DIN EN 60269-3

Documents

Product

EAN code for a single product
3838895906087
Net weight of the product
28 g
Customs tariff
85361050

Basic packaging

Basic packaging quantity
5
EAN code for a basic packaging
3838895000082
Basic packaging weight
0.158 kg
Basic packaging volume
0.138

Transport packaging

Transport packaging quantity
500
EAN code for a transport packaging
3838895163572
Transport packaging weight
16.3 kg
Transport packaging volume
17.4
Pallet quantity
26000
Pallet volume
904.8
Classification
EC000099
Class name
D-system fuse link
Breaking capacity
50
Colour code
Yellow
Construction size
DII
Max. rated operation voltage Ue AC
500
Rated current
25A
Rated voltage
500V
Rated voltage DC
250
Release characteristic
Time-lag
Type of fuse status indicator
Top fuse status indicator
Utilization category
Other
ETIM Classification – Version 7.0

Images & Diagrams

Software & drivers

Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
002312407Fuse link, DII gG 25A/500VDLow voltage fuse-linksFuse-link DDIITDZTDZFuse links D, D0, CD fuse linksDII GG 25A/500VTripping characteristic Time-lagRated current 25AType DRated voltage 500VSize DIIProduct group D Low voltage FusesCharacteristics gGRated AC voltage 500VRated DC voltage 250VDimensions E27Indicator Top fuse status indicatorBreaking capacity AC 50kABreaking capacity DC 8kAPower dissipation 3,30WCatalogue Group D Low voltage FusesStandards DIN EN 60269-1, DIN EN 60269-3Application For cable protectionFuse link DII D DII 25A 500V 250V gG
