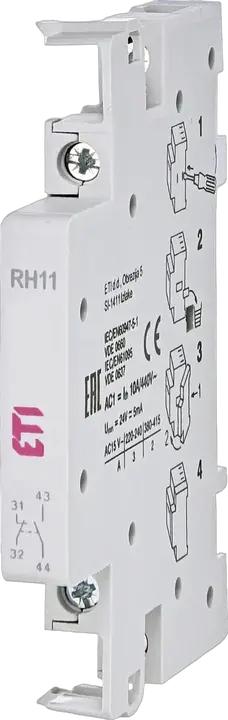

RH 11 Aux.contacts

ETI Code:: 002461101
To use with:: Modular contactor
Rated AC voltage:: 690 V
Rated DC voltage:: 690 V
Function:: Auxiliary contactor block
No. of NC contacts:: 1
Type of installation:: Contactor mounting
Category:: Modular Contactors
Catalogue group:: ETICON
Function accessories:: Auxiliary contactor block for contactors R25, R40, R63 AC
Rated operational current Ie at AC1:: 6 A

Accessories

Product

Net weight of the product: 0.1 kg
Net width: 14.6 mm
Net height: 87.4 mm
Net depth: 65 mm
Stock unit of measure: pcs

Transport Packaging

Transport packaging quantity: 1 pcs
EAN code for a transport packaging: 3838400074652
Transport packaging weight: 0.009 kg
Transport packaging volume: 0.463 dm³
Pallet quantity: 2,808 pcs
Customs tariff: 85365080

Voltage type: AC
Number of contacts as normally closed contact: 1
Device fitting: Auxiliary switch/relay
Suitable for max. number of poles main contact unit (total): 4
Rated switch current: 3 A
Number of contacts as normally open contact: 1
Rated voltage: 230 V
Suitable for max. current main contact unit: 63 A
Function: Auxiliary switch
Width in number of modular spacings: 0.5

ETIM Classification – Version 9.0
