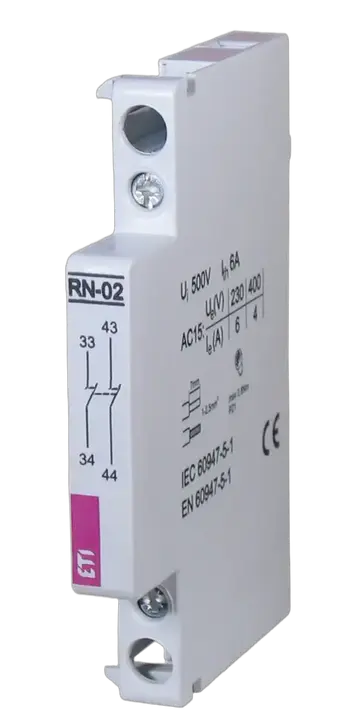

RN-02 Aux.contacts

ETI Code:: 002464069
To use with:: Modular contactor RD, R…R, RD…R
Function:: Auxiliary contactor block
No. of NC contacts:: 2
Type of installation:: DIN rail 35 mm
Category:: Modular Contactors
Catalogue group:: ETICON
Function accessories:: Auxiliary contactor block for contactors RD, R…R, RD…R
Rated operational current Ie at AC1:: 6 A

Accessories

Product

Net weight of the product: 30 g
Net width: 12.5 mm
Net height: 85 mm
Net depth: 64.5 mm
Stock unit of measure: pcs

Transport Packaging

Transport packaging quantity: 1 pcs
EAN code for a transport packaging: 3838895540960
Transport packaging weight: 0.03 kg
Transport packaging volume: 0.1 dm³
Pallet quantity: 18,000 pcs
Customs tariff: 85389099

Additional equipment possible: ✓
Voltage type: AC
Number of contacts as normally closed contact: 2
Device fitting: Auxiliary switch/relay
Suitable for max. number of poles main contact unit (total): 4
Utilization category according to EN IEC 60947-4-1: AC-1
Rated switch current: 6 A
Rated voltage: 230 V
Suitable for max. current main contact unit: 63 A
Function: Auxiliary switch
Width in number of modular spacings: 0.5

ETIM Classification – Version 9.0
