004656840

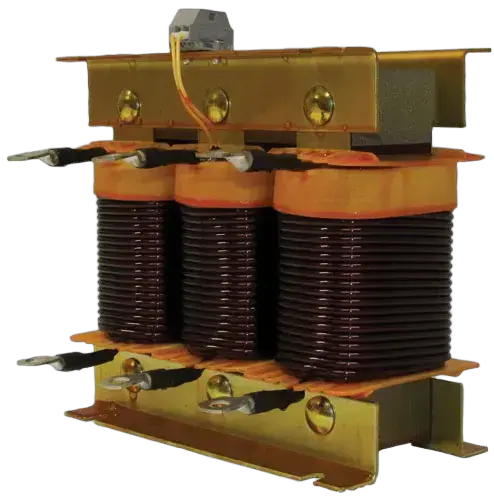

HFL 5,67/15 Al Detuning reactor
- ETI Code:
- 004656840
- Type description:
- aluminum wire
- Filtering factor:
- 0.057 %
- Reactive power:
- 15 kVAr
3 Documents
8 Logistics
Product
- Net weight of the product
- 8 kg
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895740964
- Transport packaging weight
- 8 kg
- Transport packaging volume
- 2.75 dm³
- Pallet quantity
- 70 pcs
- Customs tariff
- 85049013
