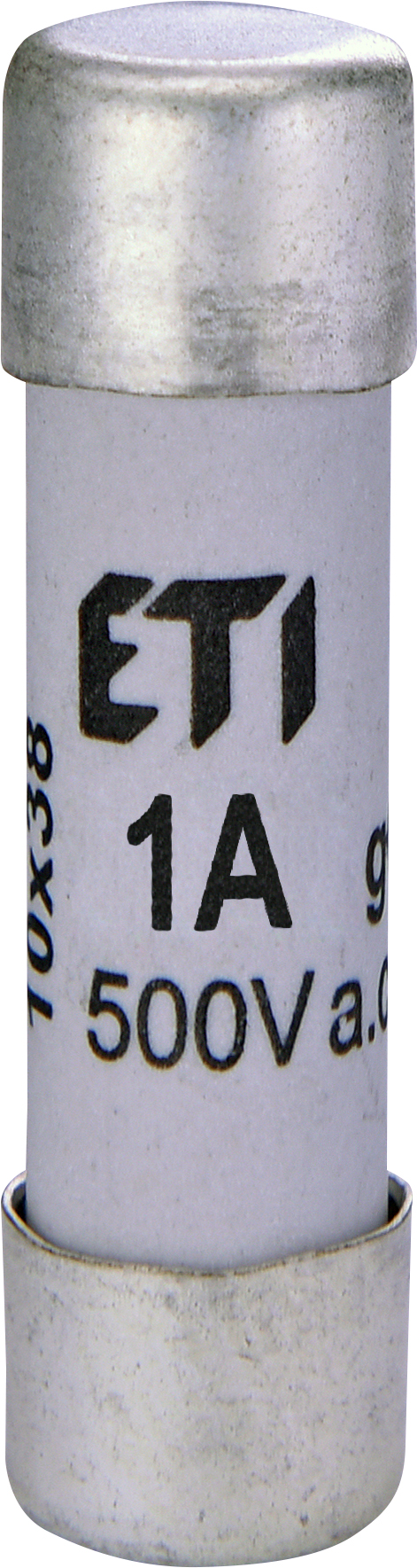

Fuse link CH10x38 gG 1A/500V 002620000

Specifications

ETI Code:
002620000
Description:
CH10x38 gG 1A/500V
Class name:
Fuse link
Type:
CH
Size:
CH10
Rated current (A):
1
Rated AC voltage (V):
500
Characteristics:
gG
Breaking capacity AC (kA):
100
Application:
For cable protection
Dimensions:
10X38
Power dissipation (W):
0,5
Standards:
IEC 60269-1, IEC 60269-2

Documents

Product

EAN code for a single product
3838895581468
Net weight of the product
7.6 g
Customs tariff
85361010

Basic packaging

Basic packaging quantity
10
EAN code for a basic packaging
3838895138853
Basic packaging weight
0.08 kg
Basic packaging volume
0.042

Transport packaging

Transport packaging quantity
500
EAN code for a transport packaging
3838895164937
Transport packaging weight
4.1 kg
Transport packaging volume
3.386
Pallet quantity
84000
Pallet volume
568.848
Classification
EC002704
Class name
Cylindrical fuse
Breaking capacity
100kA
Nominal current
1A
Size
10x38 mm
Utilization category
Other
ETIM Classification – Version 7.0

Images & Diagrams

Software & drivers

Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
002620000Fuse link, CH10x38 gG 1A/500VCCylindrical fuse-linksCHCH10gGgGFuse links D, D0, CC fuse linksCH10X38 GG 1A/50Rated current 1AType CHSize CH10Product group C low Voltage cylindrical fusesCharacteristics gGRated AC voltage 500VDimensions 10X38Breaking capacity AC 100kAPower dissipation 0,5WCatalogue Group C low Voltage cylindrical fusesStandards IEC 60269-1, IEC 60269-2Application For cable protectionFuse link CH10x38 CH CH10 1A 500V gG
