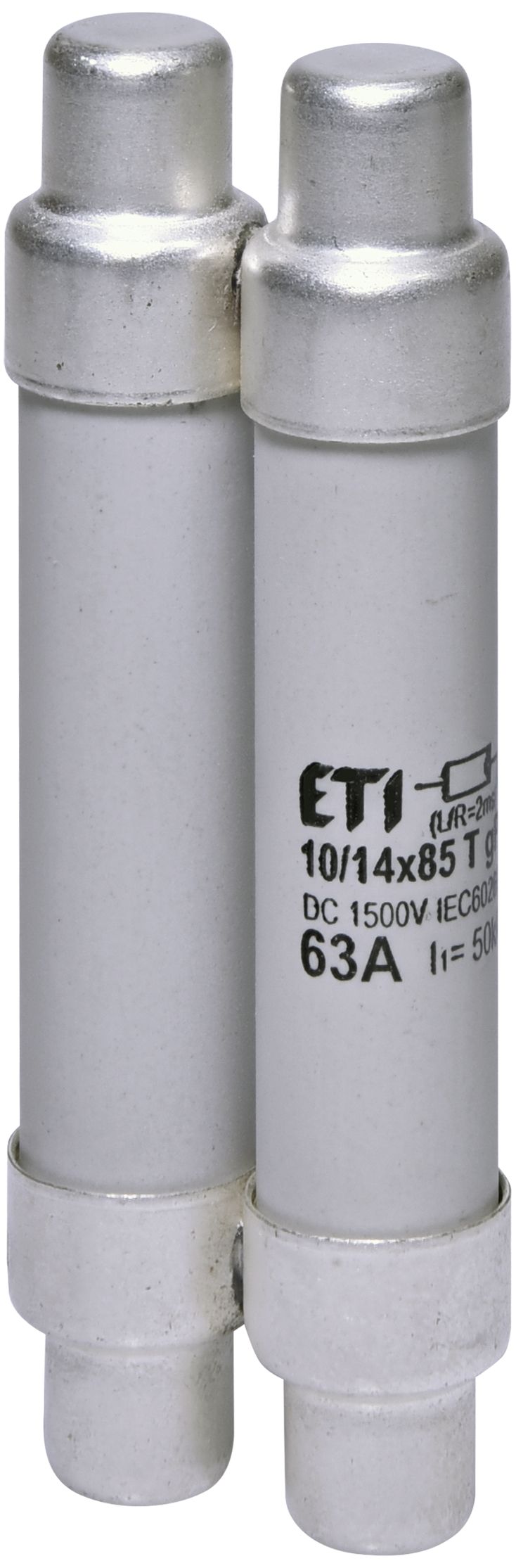

Fuse link CH 10/14x85 T gPV 63A/1500V 002626241
Specifications
- ETI Code:
- 002626241
- Description:
- CH 10/14x85 T gPV 63A/1500V
- Class name:
- Fuse link
- efuse:
- 1
- Type:
- CH
- Size:
- CH10/14x85
- Rated current (A):
- 63
- Rated DC voltage (V):
- 1500
- Characteristics:
- gPV
- L/R (ms):
- 2
- Breaking capacity DC (kA):
- 50
- Application:
- For protection of photovoltaic modules

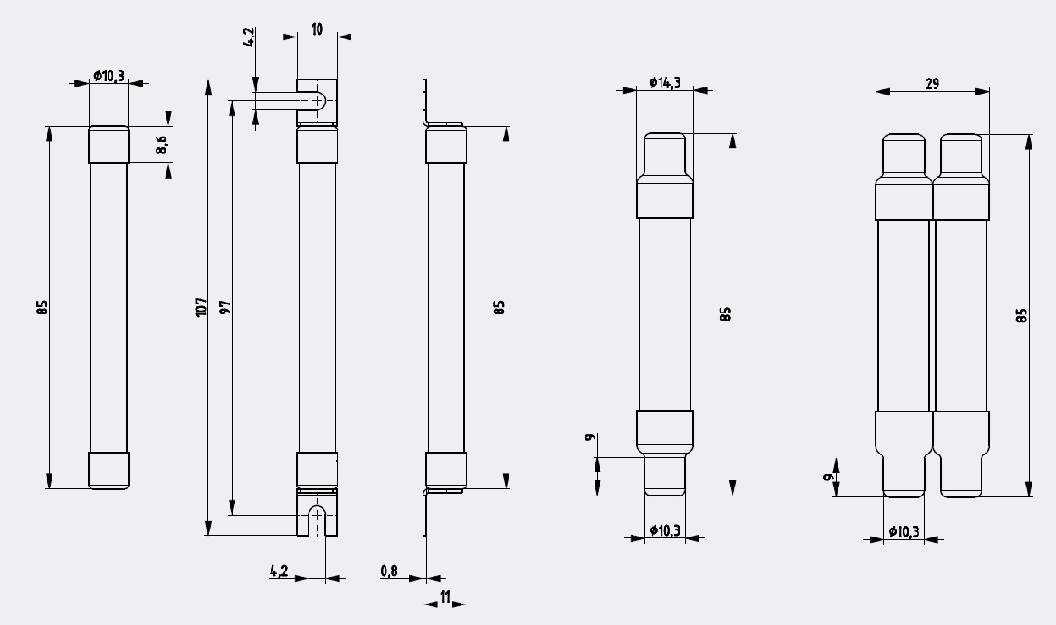

- Dimensions:
- 10/14x85 T
- Power dissipation (0,7xIn) (W):
- 5,6
- Power dissipation (W):
- 13,7
- Operating joule integral (A2s):
- 4.300
- Prearcing joule integral (A2s):
- 770
- Standards:
- IEC 60269-6, UL 248-19
- UL certificate:
- E347771
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895966555
- Net weight of the product
- 56 g
- Customs tariff
- 85351000
Level 1 Packaging
- Basic packaging quantity
- 5
- EAN code for a basic packaging
- 3838895966562
- Basic packaging weight
- 0.297 kg
Level 2 Packaging
- Transport packaging quantity
- 130
- EAN code for a transport packaging
- 3838895977612
- Transport packaging weight
- 7.912 kg
- Pallet quantity
- 15600
ETIM Clasification
- Classification
- EC002704
- Class name
- Cylindrical fuse
- Application
- For protection of photovoltaic modules
- Rated current
- 63
- Construction size
- CH10/14x85
- Rated voltage DC
- 1500
- Size
- Other
- Utilization category
- Other

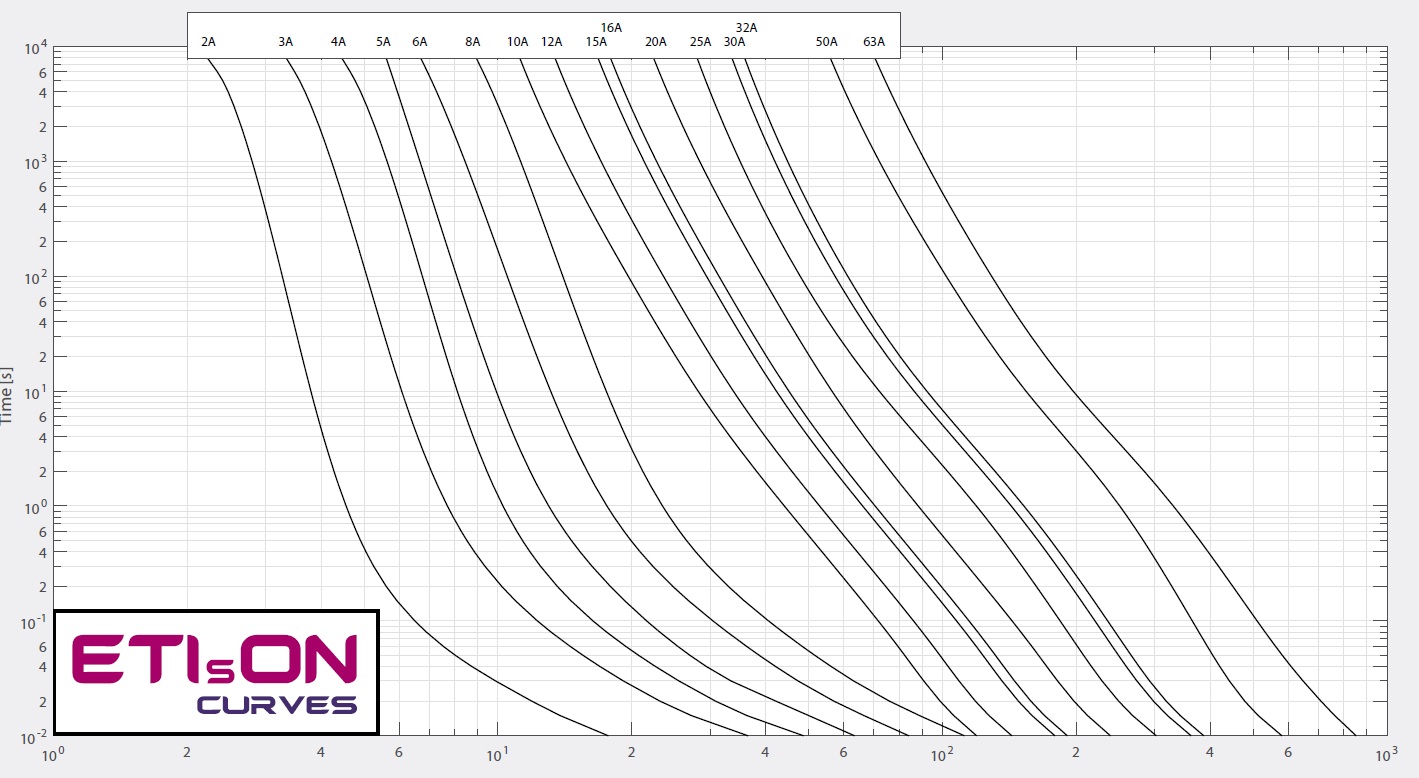

Characteristic
Images & Diagrams
Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
CH 10/14x85 T gPV 63A/1500V
