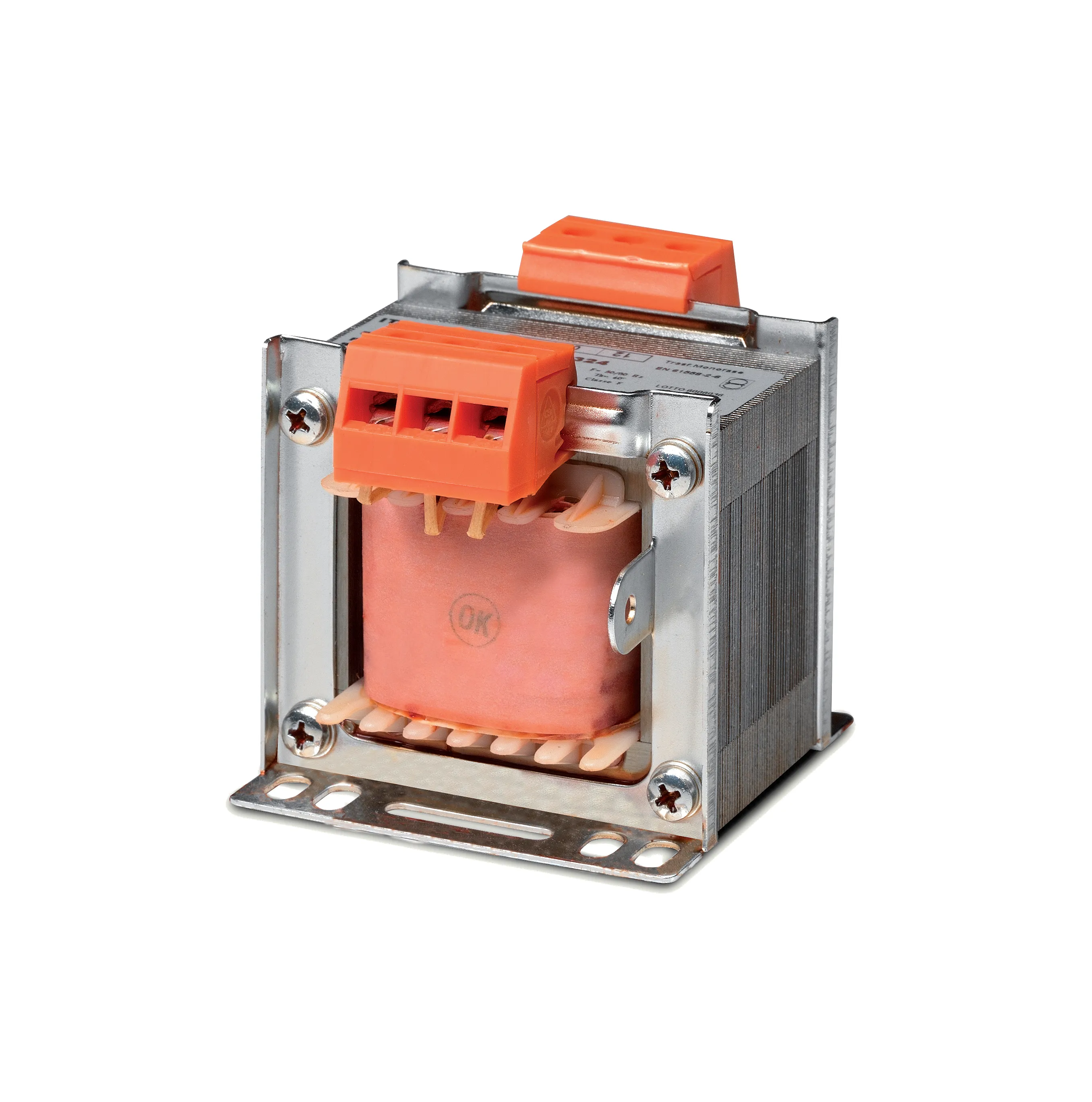

Transformer TR 1f 12-0-12V 1000VA 003801013
Specifications
- ETI Code:
- 003801013
- Description:
- TR 1f 12-0-12V 1000VA
- Class name:
- Transformer
- Catalogue Group:
- Single phase safety transformers for plate mounting
- IP rating:
- IP00
- Number of phases:
- Single
- Power (VA):
- 1000
- Primary voltage Up (V):
- 230,400
- Secondary voltage Us (V):
- 12-0-12
Documents
Logistic Data
Product
- Customs tariff
- 85043180
- logis_net_width
- 153 mm
- logis_net_height
- 130 mm
- logis_net_depth
- 160 mm
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 3838895477365
- Transport packaging weight
- 12.5 kg
- Pallet quantity
- 48
ETIM Clasification
- Classification
- EC002486
- Class name
- One-phase control transformer
- Built as safety transformer
- Yes
- Primary voltage 1
- 230…230V
- Primary voltage 2
- 400…400V
- Secondary voltage 1
- 12…12V
- Secondary voltage 2
- 12…12V
- Secondary voltage 3
- 24…24V
- Rated apparent power
- 1000VA
- Type of insulation material according to IEC 85
- B
- Degree of protection (IP)
- IP00
