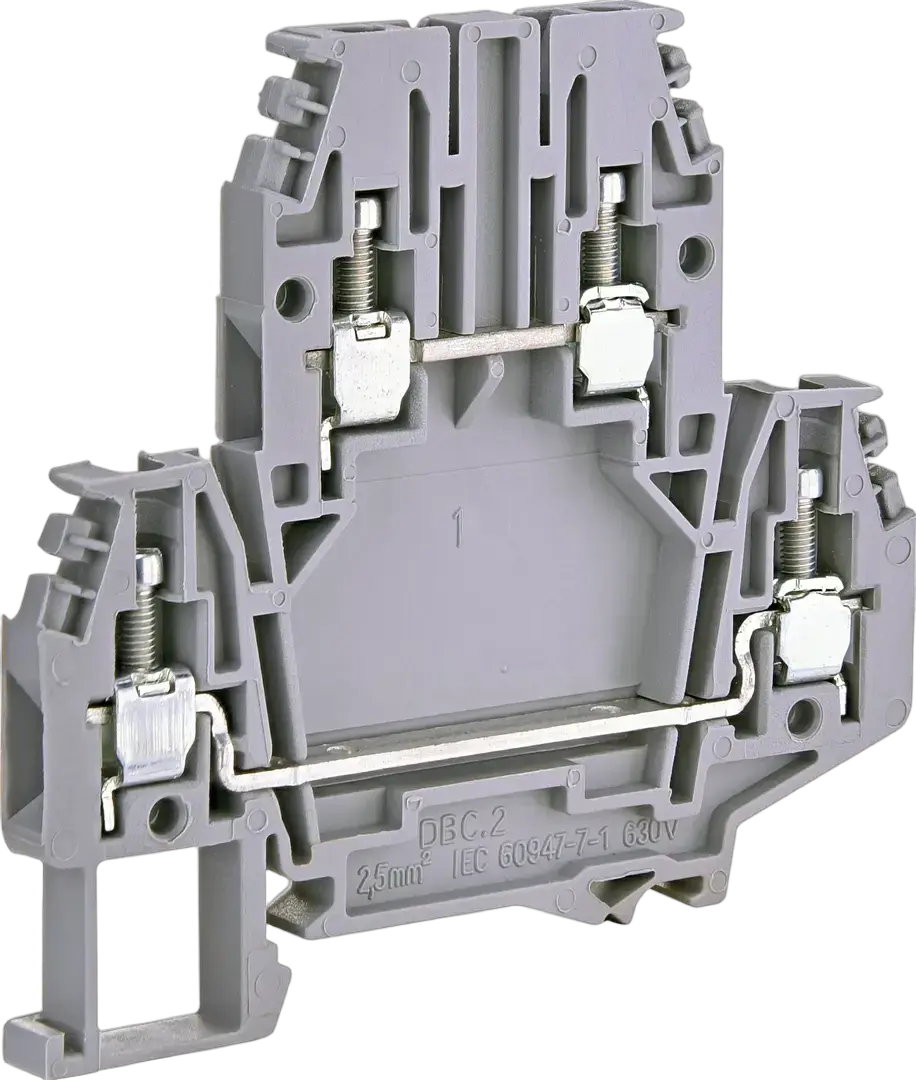

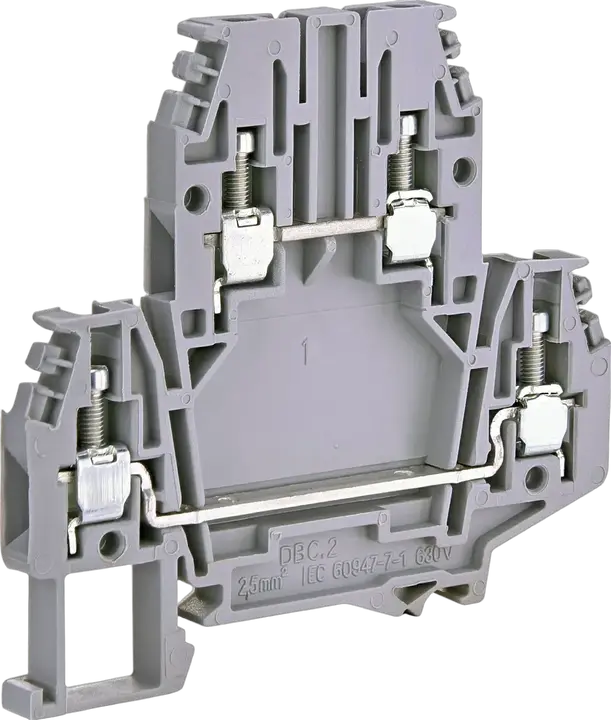

ESC2-DBC.2 Line-up terminal

ETI Code:: 003903053
Rated AC voltage:: 630 V
Rated DC voltage:: 630 V
Catalogue group:: ES Screw Type Terminal Blocks
Type of installation:: DIN rail 35 mm
Type description:: ES Screw Type Terminal Blocks
Level:: Double
Color:: Grey
Rated cross section:: 2.5 mm²
Rated impulse withstand voltage Uimp:: 8 kV
Max. current with rated cross-section:: 24 mm²
Connectable conductor cross section solid-core:: 0.2-4 mm²
Cross connection:: ✓
End section needed:: ✓

Accessories

Product

EAN code for a single product: 3838895861003
Net weight of the product: 16.33 g
Net width: 5 mm
Net height: 70 mm
Net depth: 65 mm
Stock unit of measure: pcs

Transport Packaging

Transport packaging quantity: 120 pcs
EAN code for a transport packaging: 3838895788492
Transport packaging weight: 1.94 kg
Transport Packaging Dimensions Height: 75 mm
Transport Packaging Dimensions Width: 260 mm
Transport Packaging Dimensions Depth: 150 mm
Transport packaging volume: 2.925 dm³
Pallet quantity: 37,080 pcs
Customs tariff: 85369010

Explosion-tested version 'Ex e': ✓
Width: 5 mm
Material insulation body: Thermoplastic
Rated current In: 27 A
Mounting method: DIN rail (top hat rail) 35 mm
Number of levels: 2
Type of electrical connection 1: Screw connection
Number of clamp positions per level: 2

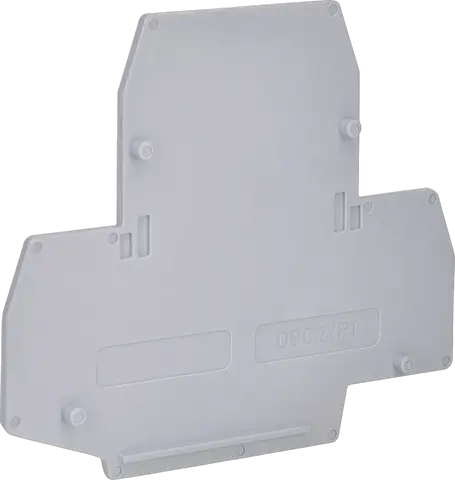

Closing plate required: ✓
Type of electrical connection 2: Screw connection
Rated voltage: 630 V
Colour: Grey
Height: 66 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 0.2 mm²
Connectable conductor cross section multi-wired(Min): 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 0.2 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 0.2 mm²
Operating temperature(Min): -40 °C
Connectable conductor cross section solid-core(Max): 4 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 4 mm²
Connectable conductor cross section multi-wired(Max): 4 mm²
Operating temperature(Max): 100 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 2.5 mm²
