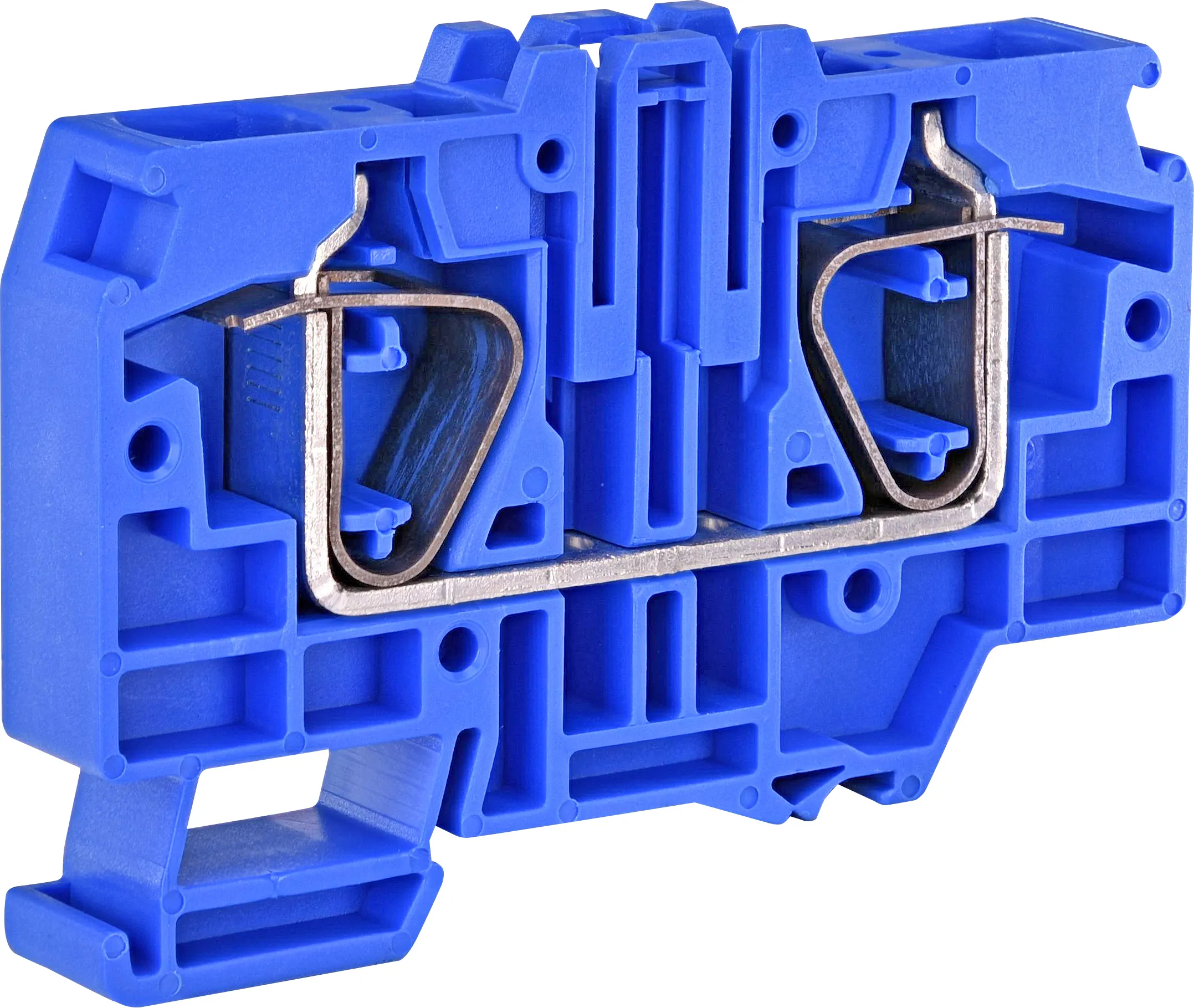

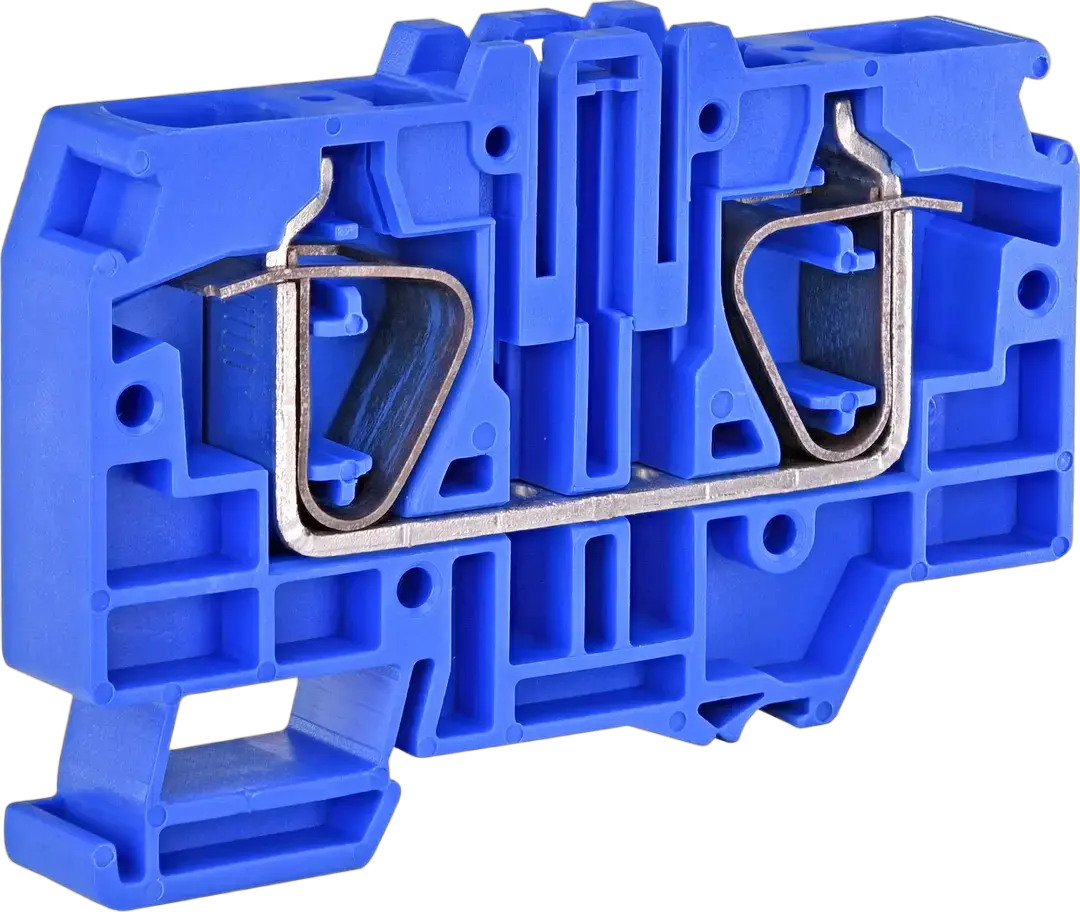

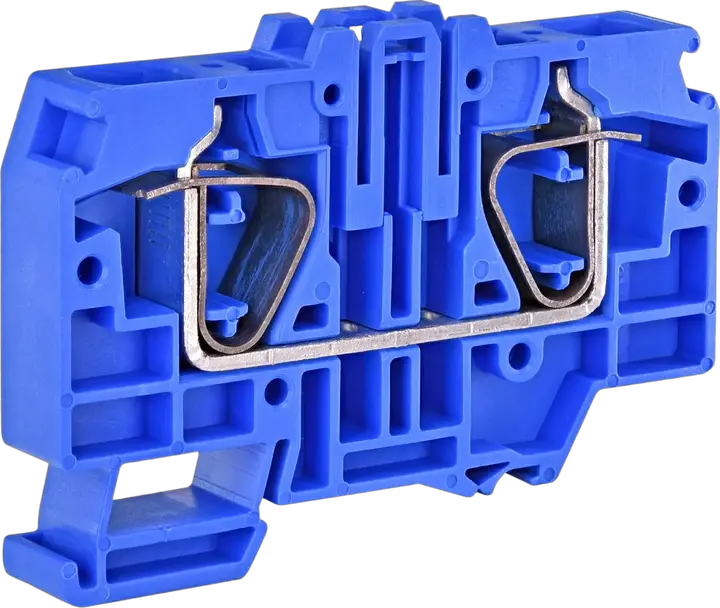

Neutral terminal ESP-HMM.16B 003903171
Specifications
- ETI Code:
- 003903171
- Description:
- ESP-HMM.16B
- Class name:
- Neutral terminal
- Level:
- Single
- Type:
- ES Spring Clamp Terminal Blocks
- Rated impulse withstand voltage Uimp (kV):
- 12kV
- Color:
- Blue
- Rated cross section:
- 16mm2
- Max current with rated cross-section (mm²):
- 76mm²
- Cross connection:
- YES
- End section needed:
- YES
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895862383
- Net weight of the product
- 38.3 g
- Customs tariff
- 85369010
- logis_net_width
- 13 mm
- logis_net_height
- 80 mm
- logis_net_depth
- 50 mm
Transport packaging
- Transport packaging quantity
- 30
- EAN code for a transport packaging
- 3838895789659
- Transport packaging weight
- 1.254 kg
- Pallet quantity
- 10560
ETIM Clasification
- Classification
- EC000897
- Class name
- Feed-through terminal block
- Connectable conductor cross section fine-strand without cable end sleeve
- 1.5…25
- Connectable conductor cross section fine-strand with cable end sleeve
- 1.5…16
- Connectable conductor cross section solid-core
- 1.5…25
- Connectable conductor cross section multi-wired
- 1.5…25
- Rated current In
- 76
- Rated voltage
- 1000
- Type of electrical connection 1
- Spring clamp connection
- Type of electrical connection 2
- Spring clamp connection
- Number of levels
- 1
- Number of clamp positions per level
- 2
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Operating temperature
- -40…100
- Inflammability class of insulation material according to with UL94
- V0
- Closing plate required
- Yes
- Colour
- Blue
- Internally connected stages
- No
Tags

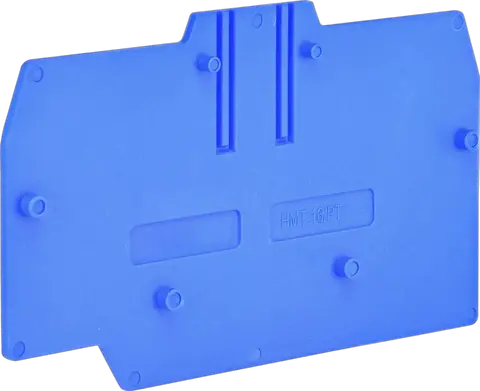

Accessories 8
>
>
