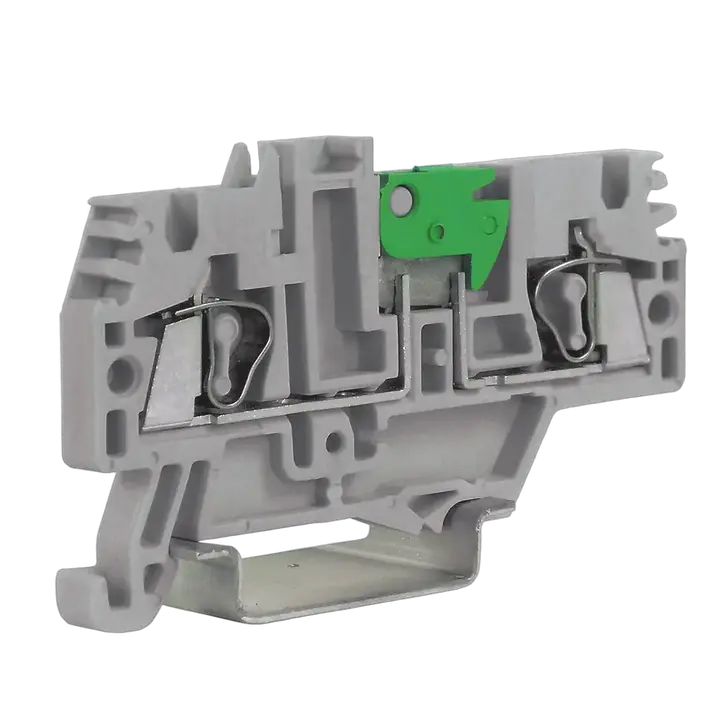

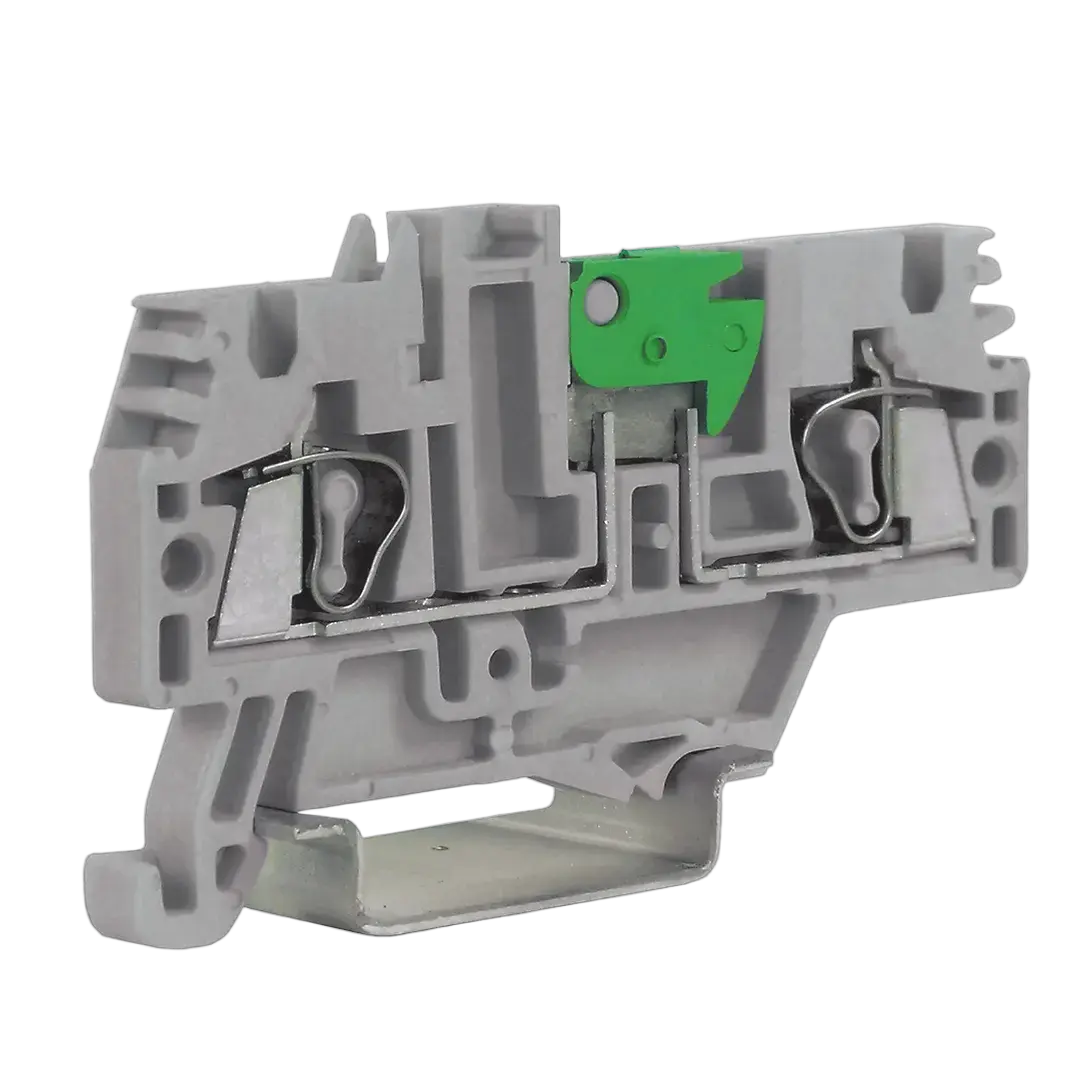

Separating module ESP-HMS.2 003903188
Specifications
- ETI Code:
- 003903188
- Description:
- ESP-HMS.2
- Class name:
- Separating module
- Mounting:
- DIN rail (top hat rail) 35 mm
- Rated voltage (V):
- 400
- Type:
- ES Spring Clamp Terminal Blocks
- Rated impulse withstand voltage Uimp (kV):
- 6 kV
- Color:
- Grey
- Rated cross section:
- 2
- Max current with rated cross-section (mm²):
- 16
- Max. current with max. cross-section (mm²):
- none
- Connectable conductor cross section solid-core (mm²):
- 0.2 - 4
- Cross connection:
- YES
- End section needed:
- YES
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895862611
- Net weight of the product
- 11 g
- Customs tariff
- 85369010
- logis_net_width
- 5 mm
- logis_net_height
- 66 mm
- logis_net_depth
- 41 mm
Transport packaging
- Transport packaging quantity
- 80
- EAN code for a transport packaging
- 3838895789826
- Transport packaging weight
- 0.904 kg
- Pallet quantity
- 36000
ETIM Clasification
- Classification
- EC000902
- Class name
- (Knife) disconnect terminal block
- Connectable conductor cross section fine-strand without cable end sleeve
- 0.2…4
- Connectable conductor cross section fine-strand with cable end sleeve
- 0.2…2.5
- Connectable conductor cross section solid-core
- 0.2…4
- Connectable conductor cross section multi-wired
- 0.2…4
- Rated current In
- 16
- Rated voltage
- 400
- Type of electrical connection 1
- Spring clamp connection
- Type of electrical connection 2
- Spring clamp connection
- Number of levels
- 1
- Number of clamp positions per level
- 2
- Internally connected stages
- No
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Inflammability class of insulation material according to with UL94
- V0
- Operating temperature
- -40…100
- Closing plate required
- Yes
- Colour
- Grey
- Type of slitting
- Swivelling
- Type of cross disconnection
- Swivelling
- With integrated test socket
- No
