004249010

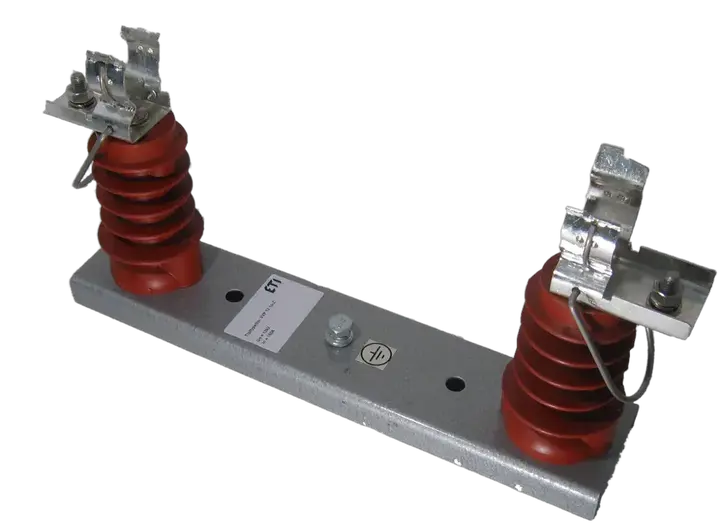

VVP 17,5 1p-N Fuse holder
- ETI Code:
- 004249010
- Product group:
- MV-fuse base
- Number of poles:
- 1
- Catalogue group:
- MV-fuse base
- Type of installation:
- Base plate mounting
- Rated AC voltage:
- 17500 V
- Rated current:
- 200 A
4 Documents
11 Logistics
Product
- Net weight of the product
- 3.6 kg
- Net width
- 80.1 mm
- Net height
- 354 mm
- Net depth
- 528 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895681632
- Transport packaging weight
- 3.6 kg
- Transport packaging volume
- 28.16 dm³
- Pallet quantity
- 64 pcs
- Customs tariff
- 85389099
3 ETIM
- For fuse size
- Other
- Mounting method
- Other
- Number of poles
- 1
ETIM Classification – Version 9.0
1 Diagrams
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
15 Tags
004249010Fuse holderVVP 17,5 1p-NVVFuse bases for VV fuse-links1p1pIndoor mountingIndoor mountingInternationalFuse links for medium voltage VV/HHFuse basesRated AC voltage: 17500 V/17500 VRated current: 200 A/200 AFuse holder TOWAR Rated AC voltage: 17500 V/17500 V Rated current: 200 A/200 A Rated current: 200 A/200 A Rated AC voltage: 17500 V/17500 V
