004261107
VVA3 36kV/10A Fuse link
- ETI Code:
- 004261107
- Type description:
- NEW VVA without striker
- Fuse type:
- NEW VVA without striker
- Rated AC voltage:
- 36000 V
- Size:
- 537
- Rated current:
- 10 A
- Indicator:
- Without
- Breaking capacity AC:
- 315 kA
- Rated minimum breaking current:
- 45 A
- Cold resistance:
- 320 mΩ
- Power dissipation:
- 40 W
4 Documents
15 Logistics
Product
- EAN code for a single product
- 3838895913153
- Net weight of the product
- 2.85 kg
- Net width
- 56 mm
- Net height
- 603 mm
- Net depth
- 56 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 3 pcs
- EAN code for a transport packaging
- 3838895913160
- Transport packaging weight
- 9.07 kg
- Transport Packaging Dimensions Height
- 0.12 m
- Transport Packaging Dimensions Width
- 0.64 m
- Transport Packaging Dimensions Depth
- 0.35 m
- Transport packaging volume
- 0.027 m³
- Pallet quantity
- 54 pcs
- Customs tariff
- 85351000
13 ETIM
- Performance category according to IEC 60282-1
- Back-up
- Voltage type
- AC
- Application
- Other
- Installation technique
- Air
- Standard
- IEC
- Length
- 537 mm
- Breaking capacity
- 31.5 kA
- Diameter
- 53 mm
- Rated voltage
- 36 kV
- Rated current
- 10 A
- Utilization category
- Other
- Rated frequency(Min)
- 45 Hz
- Rated frequency(Max)
- 60 Hz
ETIM Classification – Version 9.0
3 Diagrams
3 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
22 Tags
004261107Fuse linkVVA3 36kV/10AVVHigh voltage fuse-links36 kV537 mm537 mmVVAInternationalFuse links for medium voltage VV/HHVVA (without striker pin)Size: 537Breaking capacity AC: 315 kAPower dissipation: 40 WFuse type: NEW VVA without strikerRated minimum breaking current: 45 ARated AC voltage: 36000 V/36000 VCold resistance: 320 mΩRated current: 10 A/10 AIndicator: WithoutFuse link Size: 537 Fuse type: NEW VVA without striker Rated current: 10 A/10 A Size: 537 Rated AC voltage: 36000 V/36000 V Rated minimum breaking current: 45 A Rated AC voltage: 36000 V/36000 V Rated current: 10 A/10 A

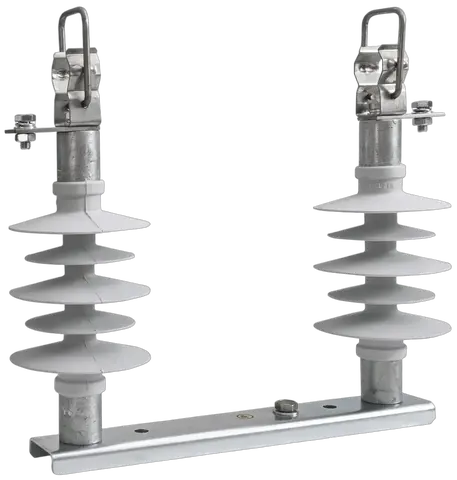

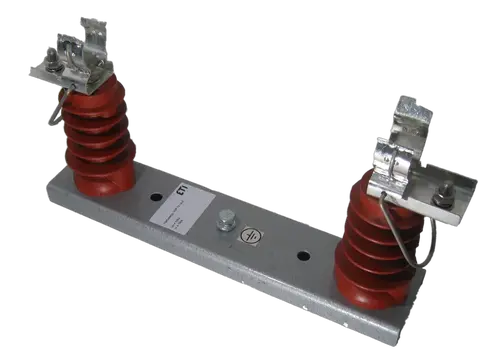

Accessories 3 All Accessories
