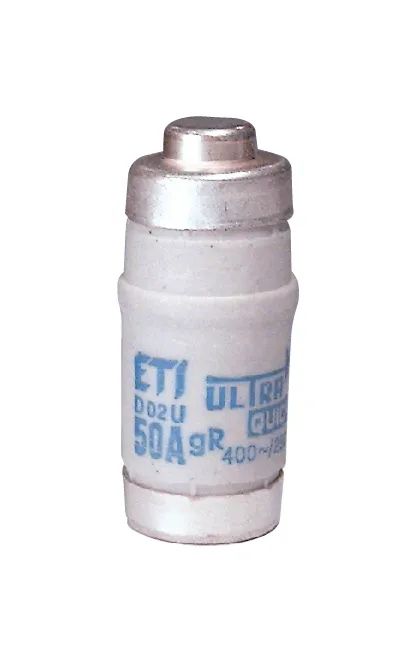

Fuse link D02 UQ gR 50A/400V 004312004

Specifications

ETI Code:
004312004
Description:
D02 UQ gR 50A/400V
Class name:
Fuse link
Type:
D0
Size:
D02
Rated current (A):
50
Rated AC voltage (V):
400
Rated DC voltage (V):
250
Characteristics:
gR
Breaking capacity AC (kA):
50
Breaking capacity DC (kA):
8
Application:
For protection of semiconductor devices
Dimensions:
E18
Indicator:
Top fuse status indicator
Power dissipation (W):
15
Operating joule integral (A2s):
1.800
Standards:
IEC 60269-4

Documents

Product

EAN code for a single product
3838895012719
Net weight of the product
0.13 kg
Customs tariff
85361050

Basic packaging

Basic packaging quantity
10
EAN code for a basic packaging
3838895012719
Basic packaging weight
0.13 kg
Basic packaging volume
0.093

Transport packaging

Transport packaging quantity
500
EAN code for a transport packaging
3838895164043
Transport packaging weight
6.86 kg
Transport packaging volume
6.1
Pallet quantity
60000
Pallet volume
732
Classification
EC001642
Class name
D0-system fuse link
Colour code
White
Construction size
D02
Rated current
50A
Rated voltage
400V
Utilization category
gR (general purpose semiconductor protection)
ETIM Classification – Version 7.0
