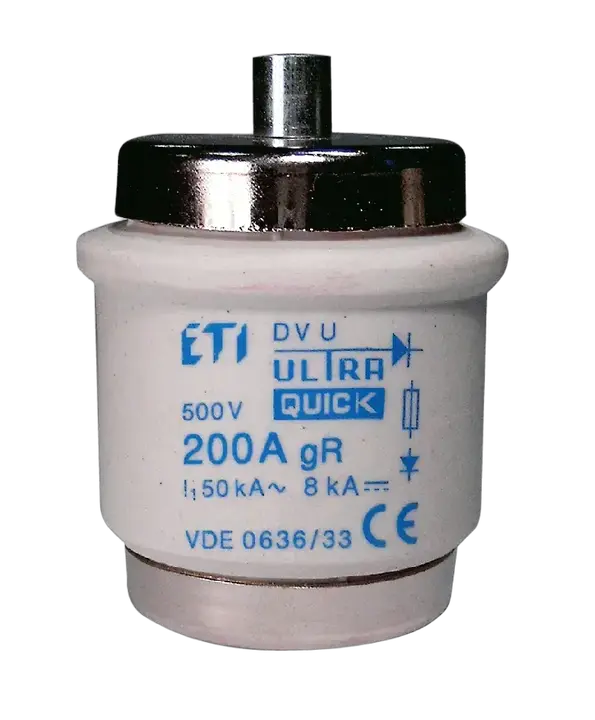

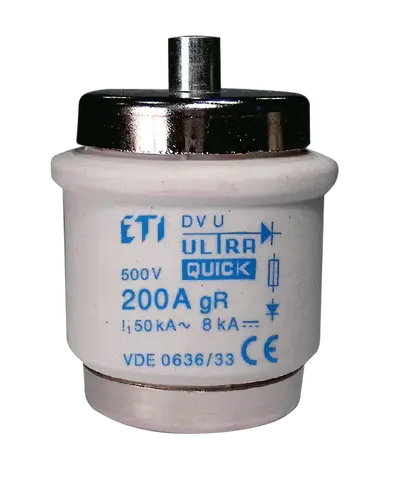

Fuse link DV UQ gR 200A/500V 004325003

Specifications

ETI Code:
004325003
Description:
DV UQ gR 200A/500V
Class name:
Fuse link
Type:
D
Size:
DV
Rated current (A):
200
Rated AC voltage (V):
500
Rated DC voltage (V):
315
Characteristics:
gR
Breaking capacity AC (kA):
50
Breaking capacity DC (kA):
8
Application:
For protection of semiconductor devices
Dimensions:
R2
Indicator:
Top fuse status indicator
Power dissipation (W):
90
Operating joule integral (A2s):
40.000
Standards:
IEC 60269-4

Documents

Product

EAN code for a single product
3838895012313
Net weight of the product
2.07 kg
Customs tariff
85361090

Basic packaging

Basic packaging quantity
10
EAN code for a basic packaging
3838895012313
Basic packaging weight
2.07 kg
Basic packaging volume
1.14

Transport packaging

Transport packaging quantity
60
EAN code for a transport packaging
3838895166238
Transport packaging weight
12.9 kg
Transport packaging volume
17.4
Pallet quantity
3120
Pallet volume
904.8
Classification
EC000099
Class name
D-system fuse link
Colour code
Blue
Construction size
DV
Nominal rated current
200A
Nominal rated voltage
500V
Release characteristic
Super fast (FF)
Utilization category
gR (general purpose semiconductor protection)
ETIM Classification – Version 7.0
