004349022

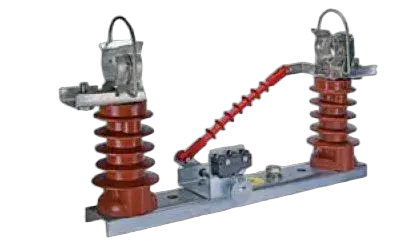

VVP 24 1p-N + NK 24 BSW Fuse holder
- ETI Code:
- 004349022
- Product group:
- MV-fuse base
- Number of poles:
- 1
- Catalogue group:
- MV-fuse base
- Catalogue subgroup:
- VV P Fuse bases
- Type of installation:
- Base plate mounting
- Type description:
- VVP-N + NK BSW (Fuse holder + microswitch fuse monitoring)
- Rated AC voltage:
- 24000 V
- Rated current:
- 200 A
4 Documents
11 Logistics
Product
- Net weight of the product
- 4.9 kg
- Net width
- 132.3 mm
- Net height
- 346.4 mm
- Net depth
- 606.21 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895681779
- Transport packaging weight
- 4.9 kg
- Transport packaging volume
- 37.296 dm³
- Pallet quantity
- 25 pcs
- Customs tariff
- 85389099
3 ETIM
- For fuse size
- Other
- Mounting method
- Other
- Number of poles
- 1
ETIM Classification – Version 9.0
1 Diagrams
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
16 Tags
004349022Fuse holderVVP 24 1p-N + NK 24 BSWVVFuse bases for VV fuse-links1pIndoor mountingIndoor mountingIndoor mountingInternationalFuse links for medium voltage VV/HHFuse basesType description: VVP-N + NK BSW (Fuse holder + microswitch fuse monitoring)Rated AC voltage: 24000 V/24000 VRated current: 200 A/200 AFuse holder Rated AC voltage: 24000 V/24000 V Rated current: 200 A/200 A Rated current: 200 A/200 A Rated AC voltage: 24000 V/24000 V
