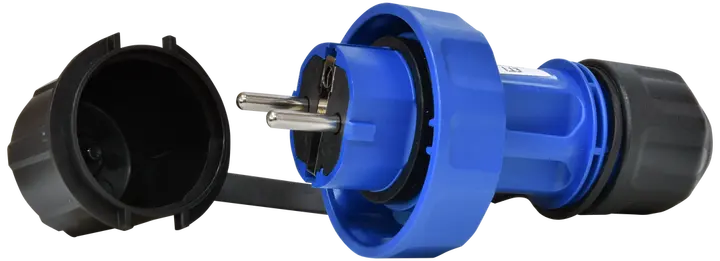

CEE Socket EEVG 16 004482127
Specifications
- ETI Code:
- 004482127
- Description:
- EEVG 16
- Class name:
- CEE Socket
- Function:
- Accessories
- Rated voltage (V):
- 230
- Number of poles:
- 3
- IP rating:
- IP67
- Type: socket/plug:
- Unischuko plug
Documents
Logistic Data
Product
- Customs tariff
- 85366990
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895675679
- Basic packaging weight
- 0.12 kg
Transport packaging
- Transport packaging quantity
- 14
- EAN code for a transport packaging
- 3838895675686
- Transport packaging weight
- 1.68 kg
- Pallet quantity
- 1806
ETIM Clasification
- Classification
- EC001326
- Class name
- Plug with protective contact for devices
- Material
- Plastic
- Material quality
- Thermoplastic
- Construction type
- Built-up device plug
- Degree of protection (IP)
- IP67
- Insert direction
- Straight
- Connection system
- Screwed terminal
- Suitable for protective contact pin
- Yes
- Colour
- Blue
- Number of poles
- 2
