002442900

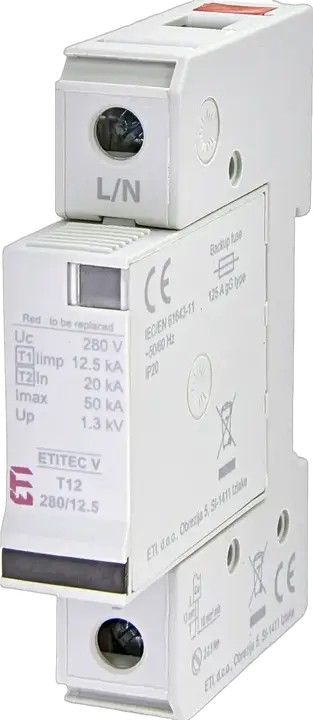

ETITEC V T12 280/12,5 1+0 Surge arrester
- ETI Code:
- 002442900
- Function:
- SPD
- Surge arrester type:
- T1, T2
- Uc Continous Operating Voltage AC:
- 280 V
- Iimp(10/350) Impulse Current:
- 12.5 kA
- Nominal Discharge Current (8/20 μs) In:
- 20 kA
- Max. Discharge current Imax, 8/20:
- 50 kA
- Current type:
- DC
- Rated AC voltage:
- 230 V
- Up - Voltage Protection Level:
- 3.9 kV
- Remote signalisation:
- No
- Leakage Current:
- Yes
- Network system:
- TN
- Number of modules:
- 3
- Installation:
- Home and residental building protection
- Built-in depth:
- 68 mm
- IP rating:
- IP20
- Applied Technology:
- GDT
- Catalogue Group:
- ETITEC V
27 Logistics
Product
- Net weight of the product
- 0.129 kg
- Net width
- 17.8 mm
- Net height
- 95.3 mm
- Net depth
- 67.2 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895826446
- Basic packaging weight
- 0.14 kg
- Basic Packaging Dimensions Height
- 83 mm
- Basic Packaging Dimensions Width
- 20 mm
- Basic Packaging Dimensions Depth
- 100 mm
- Basic packaging volume
- 0.166 dm³
Transport Packaging
- Intermediate packaging quantity
- 8 pcs
- EAN code for a intermediate packaging
- 3838895857198
- Intermediate packaging weight
- 1.225 kg
- Intermediate Packaging Dimensions Height
- 90 mm
- Intermediate Packaging Dimensions Width
- 105 mm
- Intermediate Packaging Dimensions Depth
- 183 mm
- Transport packaging quantity
- 96 pcs
- EAN code for a transport packaging
- 3838895826453
- Transport packaging weight
- 13.44 kg
- Transport Packaging Dimensions Height
- 290 mm
- Transport Packaging Dimensions Width
- 210 mm
- Transport Packaging Dimensions Depth
- 460 mm
- Transport packaging volume
- 28.014 dm³
- Pallet quantity
- 1,536 pcs
- Customs tariff
- 85354000
13 ETIM
- System configuration TN-C
- Yes
- Nominal voltage AC
- 230 V
- Test class
- Type 1 + 2
- Degree of protection (IP)
- IP20
- Mounting method
- DIN rail (top hat rail) 35 mm
- Lightning impulse current (10/350 µs)
- 12.5 kA
- Specific energy (W/R)
- 40 kJ/Ohm
- System configuration TN-S
- Yes
- Voltage protection level
- 1.3 kV
- System configuration TN
- Yes
- Number of poles
- 1
- Signalling at the device
- Optical
- Max. continuous voltage AC
- 280 V
ETIM Classification – Version 9.0
