002921067

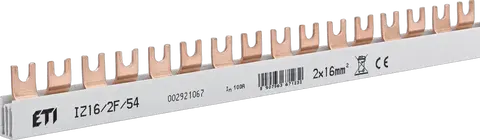

IZ16/2F/54 Insulated busbar
- ETI Code:
- 002921067
- To use with:
- ETIMAT 6, ETITEC, SV, VLD01, ETIMAT P10
- Catalogue Group:
- IZ Section rails
- Type description:
- Fork Type
- Number of poles:
- 2
- Function:
- Section rails
- Busbar type:
- FORK
- Rated current:
- 100 A
- Rated cross section:
- 16 mm²
- Lenght in modules:
- 1x54
- No. Of Phases:
- 2
- Rated AC voltage:
- 500 V
- Rated DC voltage:
- 500 V
- Type accessories:
- Section rails
5 Documents
15 Logistics
Product
- Net weight of the product
- 0.27 kg
- Net width
- 971.1 mm
- Net height
- 29.4 mm
- Net depth
- 10.2 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 5907563671232
- Basic packaging weight
- 0.566 kg
- Basic packaging volume
- 0.2 dm³
Transport Packaging
- Transport packaging quantity
- 10 pcs
- EAN code for a transport packaging
- 5907563671249
- Transport packaging weight
- 5.778 kg
- Transport packaging volume
- 2 dm³
- Pallet quantity
- 1,380 pcs
- Customs tariff
- 85389099
9 ETIM
- Cross section
- 16 mm²
- Suitable for devices with N-conductor
- Yes
- Number of phases
- 2
- Rated permanent current Iu
- 100 A
- Module width
- 17.8 mm
- Length
- 1,000 mm
- Max. rated operation voltage Ue
- 500 V
- Insulated
- Yes
- Type of electric connection
- Fork
ETIM Classification – Version 9.0
