004643123

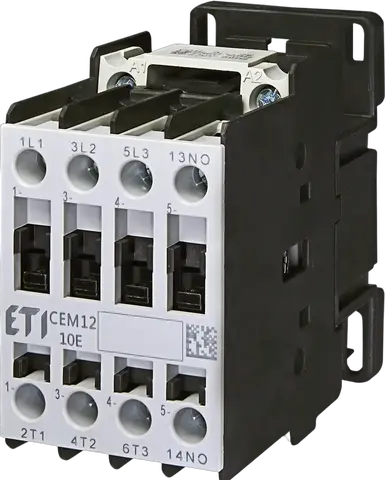

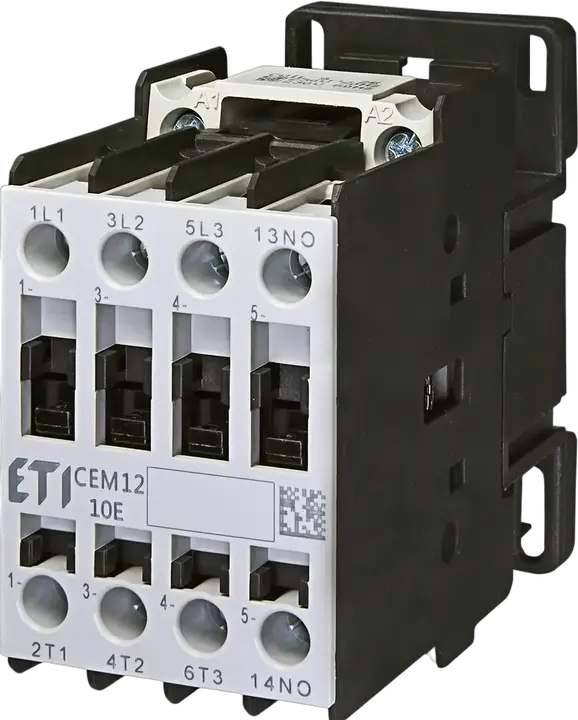

CEM12.10-230V-50/60Hz Motor contactor
- ETI Code:
- 004643123
- Rated operational power at AC1:
- 25 kW
- DC rated control supply voltage Uc:
- 230 V
- Rated operational current Ie at AC1:
- 25 A
- Rated operational current Ie at AC3, 400V:
- 12 A
- Rated operational voltage (AC):
- 690 V
- Rated control circuit voltage Uc (AC):
- 230 V
- Number of poles:
- 3
- No. of aux NO contacts:
- 1
- Function:
- Motor contactor
- Catalogue group:
- CEM Motor contactor
21 Logistics
Product
- Net weight of the product
- 0.295 kg
- Net width
- 45 mm
- Net height
- 81 mm
- Net depth
- 85.55 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 7890355108024
- Basic packaging weight
- 0.32 kg
- Basic Packaging Dimensions Height
- 90 mm
- Basic Packaging Dimensions Width
- 52 mm
- Basic Packaging Dimensions Depth
- 89 mm
- Basic packaging volume
- 0.417 dm³
Transport Packaging
- Transport packaging quantity
- 20 pcs
- EAN code for a transport packaging
- 17890355108021
- Transport packaging weight
- 7.115 kg
- Transport Packaging Dimensions Height
- 404 mm
- Transport Packaging Dimensions Width
- 289 mm
- Transport Packaging Dimensions Depth
- 95 mm
- Transport packaging volume
- 11.092 dm³
- Pallet quantity
- 1,800 pcs
- Customs tariff
- 85364900
13 ETIM
- Rated operation current Ie at AC-3, 400 V
- 12 A
- Voltage type for actuating
- AC
- Type of electrical connection of main circuit
- Frame clamp
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally open contact
- 1
- Rated operation power at AC-3, 400 V
- 5.5 kW
- Rated operation current Ie at AC-1, 400 V
- 25 A
- Rated control supply voltage AC 60 Hz(Min)
- 230 V
- Rated control supply voltage DC(Min)
- 230 V
- Rated control supply voltage AC 50 Hz(Min)
- 230 V
- Rated control supply voltage AC 60 Hz(Max)
- 230 V
- Rated control supply voltage AC 50 Hz(Max)
- 230 V
- Rated control supply voltage DC(Max)
- 230 V
ETIM Classification – Version 9.0
