Switch disconnector PV LBS 400 3P DC1500 B4T 004661993
Specifications
- ETI Code:
- 004661993
- Description:
- LBS 400 3P DC1500 B4T
- Class name:
- Switch disconnector PV
- Function:
- PV Switch disconnectors, 0-1
- Number of poles:
- 3
- Max. rated operational voltage Ur (V):
- 1500V
- Thermal current Ith (A):
- 400A
- Rated operational current Ie DC-21 B at 1000V DC (A):
- 400A
Documents
Logistic Data
Product
- Net weight of the product
- 2.39 kg
- Customs tariff
- 85365080
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838400120236
- Basic packaging weight
- 2.39 kg
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 3838400120229
- Transport packaging weight
- 76.5 kg
- Pallet quantity
- 150

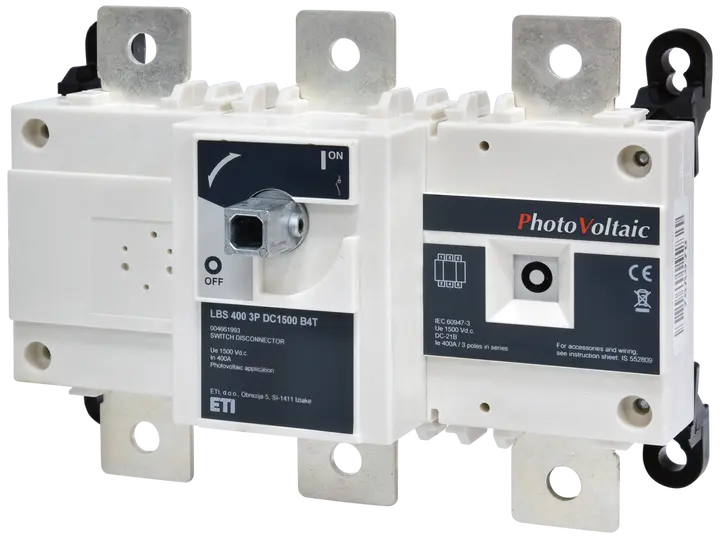

LBS 400 3P DC1500 B4T
