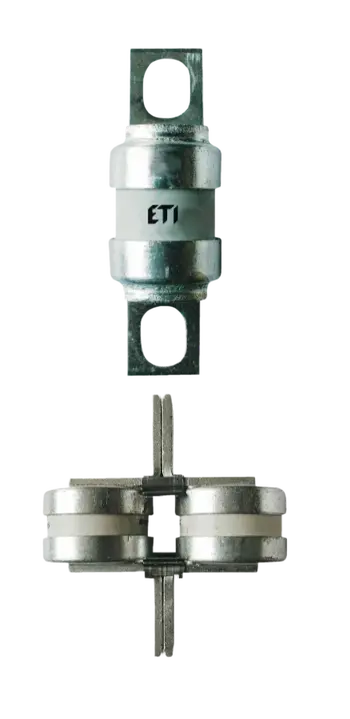

Fuse link BS8UQ/38/6A/240V 004750001

Specifications

ETI Code:
004750001
Description:
BS8UQ/38/6A/240V
Class name:
Fuse link
Type:
BS
Size:
BS8
Rated current (A):
6
Rated AC voltage (V):
240
Rated DC voltage (V):
120
Characteristics:
aR
Breaking capacity AC (kA):
100
Breaking capacity DC (kA):
100
Application:
For protection of semiconductor devices
Dimensions:
screw 38mm
Power dissipation (W):
1
Operating joule integral (A2s):
9
Standards:
IEC 60269-4, BS88 Part 4

Documents

Product

EAN code for a single product
3838895362357
Net weight of the product
0.005 kg
Customs tariff
85361010

Basic packaging

Basic packaging quantity
1
EAN code for a basic packaging
3838895362357
Basic packaging weight
0.005 kg
Basic packaging volume
0.005

Transport packaging

Transport packaging quantity
10
EAN code for a transport packaging
3838895356868
Transport packaging weight
0.215 kg
Transport packaging volume
0.055
Pallet quantity
37210
Pallet volume
204.655
Classification
EC002704
Class name
Cylindrical fuse
Breaking capacity
100kA
Nominal current
6A
Rated voltage
Other
Size
Other
Utilization category
Other
ETIM Classification – Version 7.0

Images & Diagrams

004750001Fuse link, BS8UQ/38/6A/240VUltra QuickSystem BSaR CharacteristicaR CharacteristicRated voltage 240VBS8Fuse links for semi conductor protection ULTRA QUICKFuse links ULTRA QUICKBS8UQ/38/6A/240VRated current 6AType BSSize BS8Product group Semiconductor ProtectionCharacteristics aRRated AC voltage 240VRated DC voltage 120VDimensions screw 38mmBreaking capacity AC 100kABreaking capacity DC 100kAPower dissipation 1WCatalogue Group Semiconductor ProtectionStandards IEC 60269-4, BS88 Part 4Operating joule integral 9A2sApplication For protection of semiconductor devicesFuse link BS8UQ/38/6A/240V BS BS8 6A 240V 120V aR
