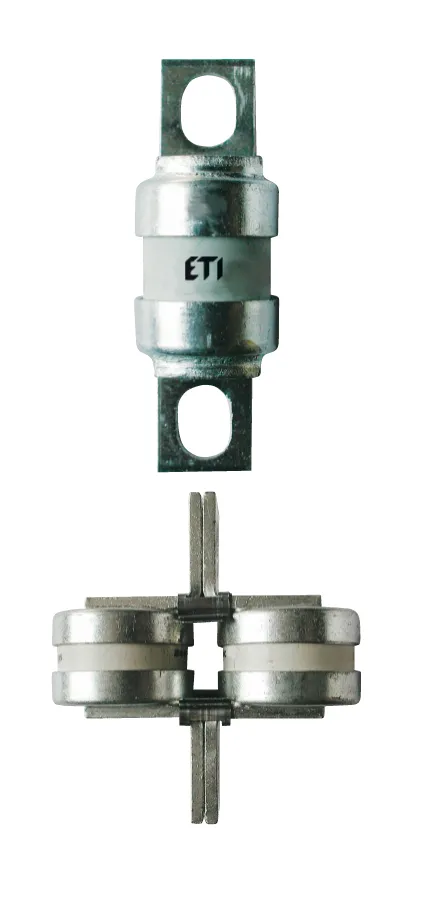

Fuse link BS8UQ/38/12A/240V 004750003 Obsolete

This product is obsolete and does not have a direct substitute, please contact our technical support in order to find a suitable replacement.

Specifications

ETI Code:
004750003
Description:
*BS8UQ/38/12A/240V
Class name:
Fuse link
efuse:
1
Product group:
Semiconductor Protection
Type:
BS
Size:
BS8
Rated current (A):
12
Rated AC voltage (V):
240
Rated DC voltage (V):
120
Characteristics:
aR
Breaking capacity AC (kA):
100
Breaking capacity DC (kA):
100
Application:
For protection of semiconductor devices
Dimensions:
screw 38mm
Power dissipation (W):
2,5
Operating joule integral (A2s):
32
Standards:
IEC 60269-4, BS88 Part 4

Documents

Product

EAN code for a single product

Net weight of the product
0.022  kg
Customs tariff
85361050
logis_net_width
8  mm
logis_net_height
47  mm
logis_net_depth
9  mm

Level 1 Packaging

Basic packaging quantity
5
EAN code for a basic packaging
3838895415800
Basic packaging weight
0.025  kg

Level 2 Packaging

Transport packaging quantity
10
EAN code for a transport packaging
3838895361091
Transport packaging weight
0.215  kg
Pallet quantity
37210
Classification
EC002704
Class name
Cylindrical fuse
Rated voltage DC
120
Rated current
12
Application
For protection of semiconductor devices
Construction size
BS8
Max. rated operation voltage Ue AC
240
Size
Other
Rated voltage
Other
Utilization category
Other
Nominal current
12A
Breaking capacity
100kA
ETIM Classification – Version 7.0
