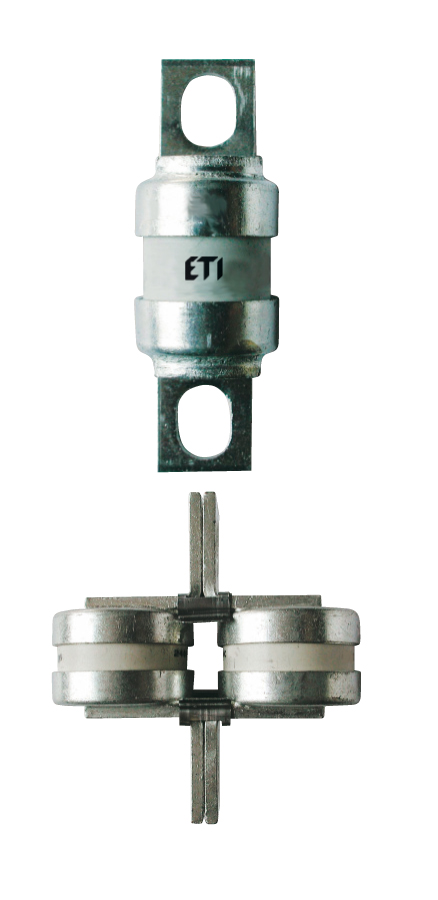

Fuse link BS8UQ/38/16A/240V 004750004

Specifications

ETI Code:
004750004
Description:
BS8UQ/38/16A/240V
Class name:
Fuse link
Type:
BS
Size:
BS8
Rated current (A):
16
Rated AC voltage (V):
240
Rated DC voltage (V):
120
Characteristics:
aR
Breaking capacity AC (kA):
100
Breaking capacity DC (kA):
100
Application:
For protection of semiconductor devices

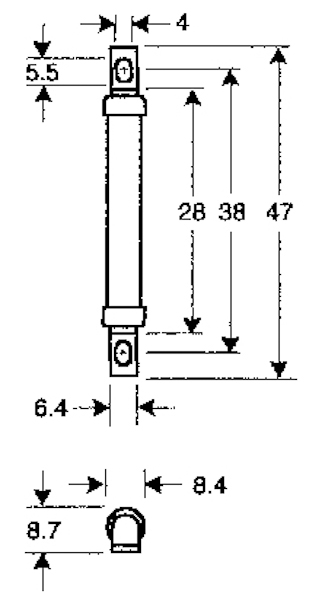

Dimensions:
screw 38mm
Power dissipation (W):
2,5

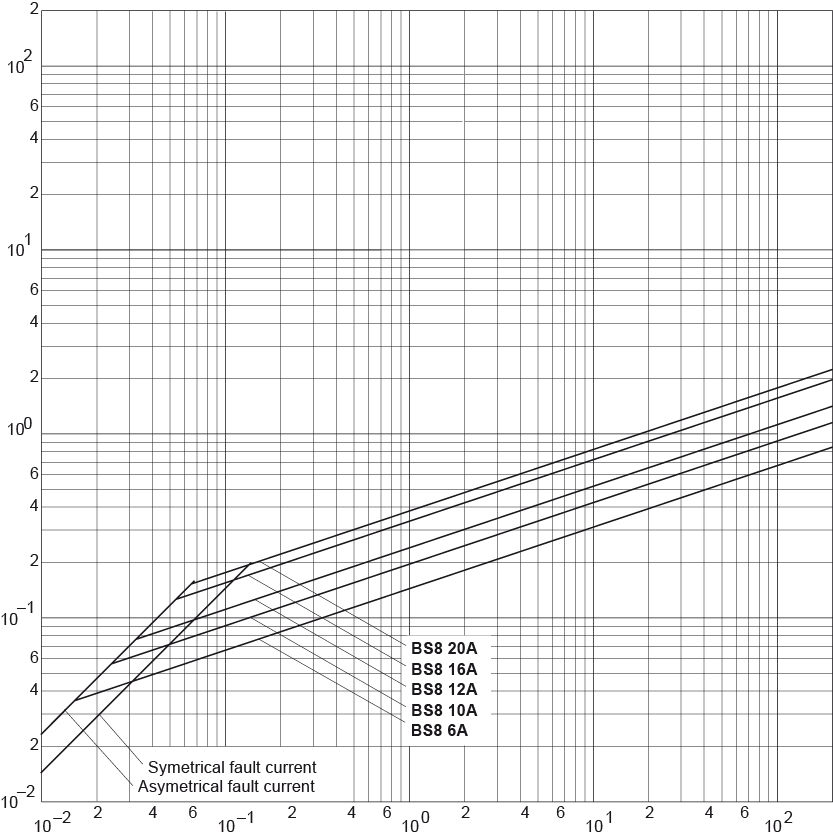

Operating joule integral (A2s):
100
Standards:
IEC 60269-4, BS88 Part 4

Documents

Product

EAN code for a single product
Net weight of the product
0.022 kg
Customs tariff
85361050

Basic packaging

Basic packaging quantity
20
EAN code for a basic packaging
3838895577195
Basic packaging weight
0.43 kg
Basic packaging volume
0.11

Transport packaging

Transport packaging quantity
20
EAN code for a transport packaging
3838895577195
Transport packaging weight
0.43 kg
Transport packaging volume
0.11
Pallet quantity
37200
Pallet volume
204.6
Classification
EC002704
Class name
Cylindrical fuse
Breaking capacity
100kA
Nominal current
16A
Rated voltage
Other
Size
Other
Utilization category
Other
ETIM Classification – Version 7.0

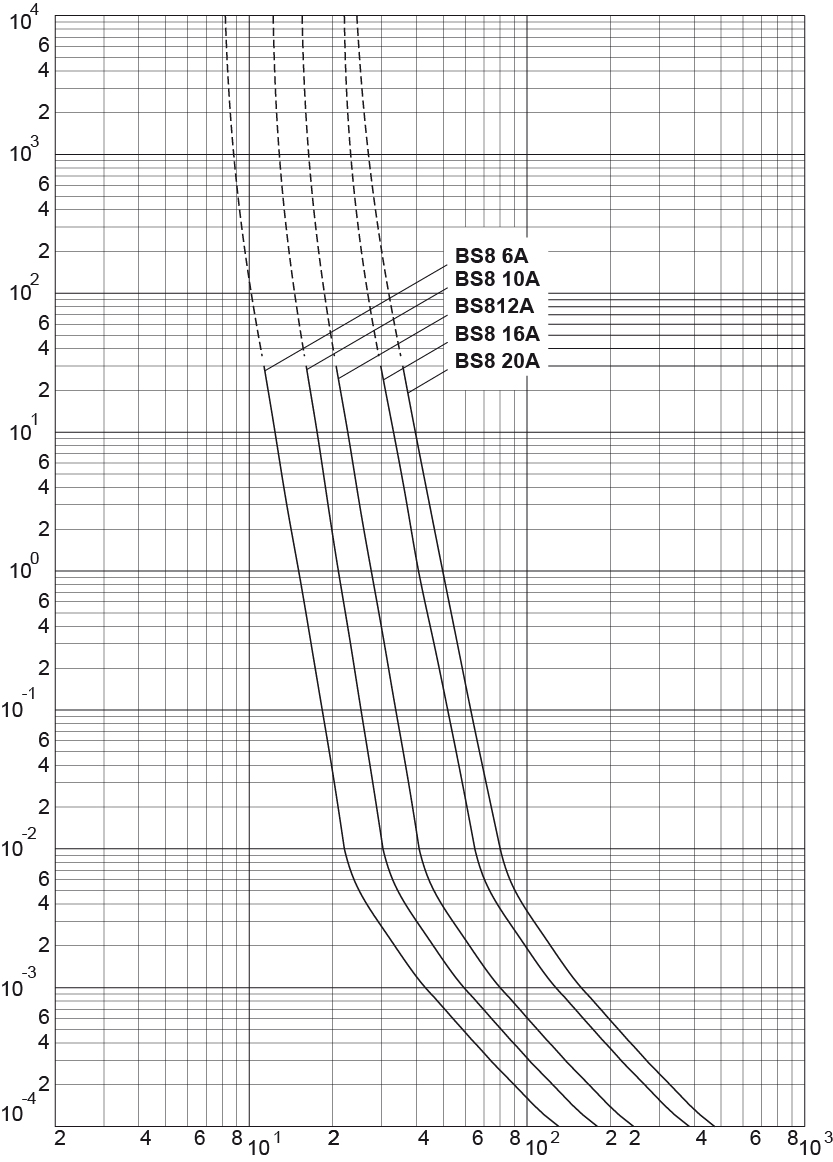

Images & Diagrams

004750004Fuse link, BS8UQ/38/16A/240VUltra QuickSystem BSaR CharacteristicaR CharacteristicRated voltage 240VBS8Fuse links for semi conductor protection ULTRA QUICKFuse links ULTRA QUICKBS8UQ/38/16A/240Rated current 16AType BSSize BS8Product group Semiconductor ProtectionCharacteristics aRRated AC voltage 240VRated DC voltage 120VDimensions screw 38mmBreaking capacity AC 100kABreaking capacity DC 100kAPower dissipation 2,5WCatalogue Group Semiconductor ProtectionStandards IEC 60269-4, BS88 Part 4Operating joule integral 100A2sApplication For protection of semiconductor devicesFuse link BS8UQ/38/16A/240V BS BS8 16A 240V 120V aR
