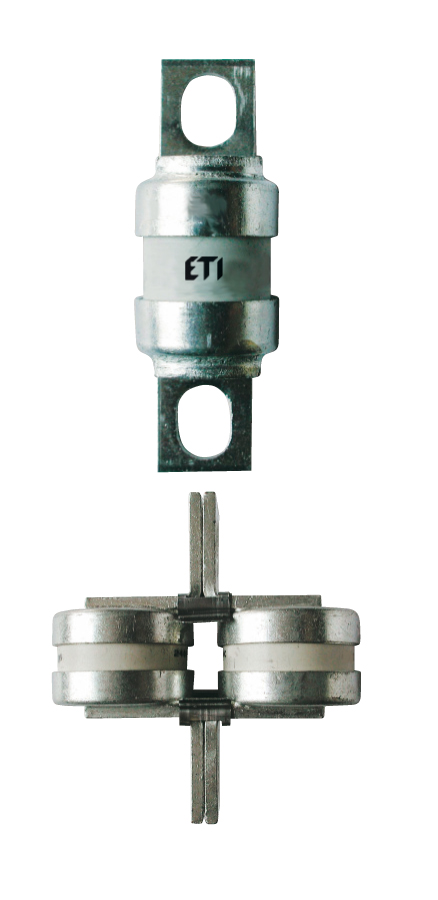

Fuse link BS17UQ/41/25A/240V 004750106

Specifications

ETI Code:
004750106
Description:
BS17UQ/41/25A/240V
Class name:
Fuse link
efuse:
1
Product group:
Semiconductor Protection
Type:
BS
Size:
BS17
Rated current (A):
25
Rated AC voltage (V):
240
Rated DC voltage (V):
120
Characteristics:
aR
Breaking capacity AC (kA):
100
Breaking capacity DC (kA):
100
Application:
For protection of semiconductor devices

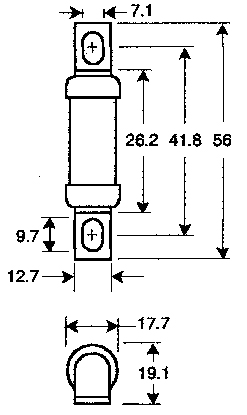

Dimensions:
screw 42mm
Power dissipation (W):
1,7
Operating joule integral (A2s):
240
Standards:
IEC 60269-4, BS88 Part 4

Documents

Product

EAN code for a single product

Net weight of the product
0.048  kg
Customs tariff
85361050
logis_net_width
18  mm
logis_net_height
56  mm
logis_net_depth
19  mm

Level 1 Packaging

Basic packaging quantity
5
EAN code for a basic packaging
3838895415831
Basic packaging weight
0.155  kg

Level 2 Packaging

Transport packaging quantity
10
EAN code for a transport packaging
3838895361121
Transport packaging weight
0.48  kg
Pallet quantity
16670
Classification
EC002704
Class name
Cylindrical fuse
Max. rated operation voltage Ue AC
240
Construction size
BS17
Rated voltage DC
120
Rated current
25
Application
For protection of semiconductor devices
Size
Other
Rated voltage
Other
Utilization category
Other
Nominal current
25A
Breaking capacity
100kA
ETIM Classification – Version 7.0

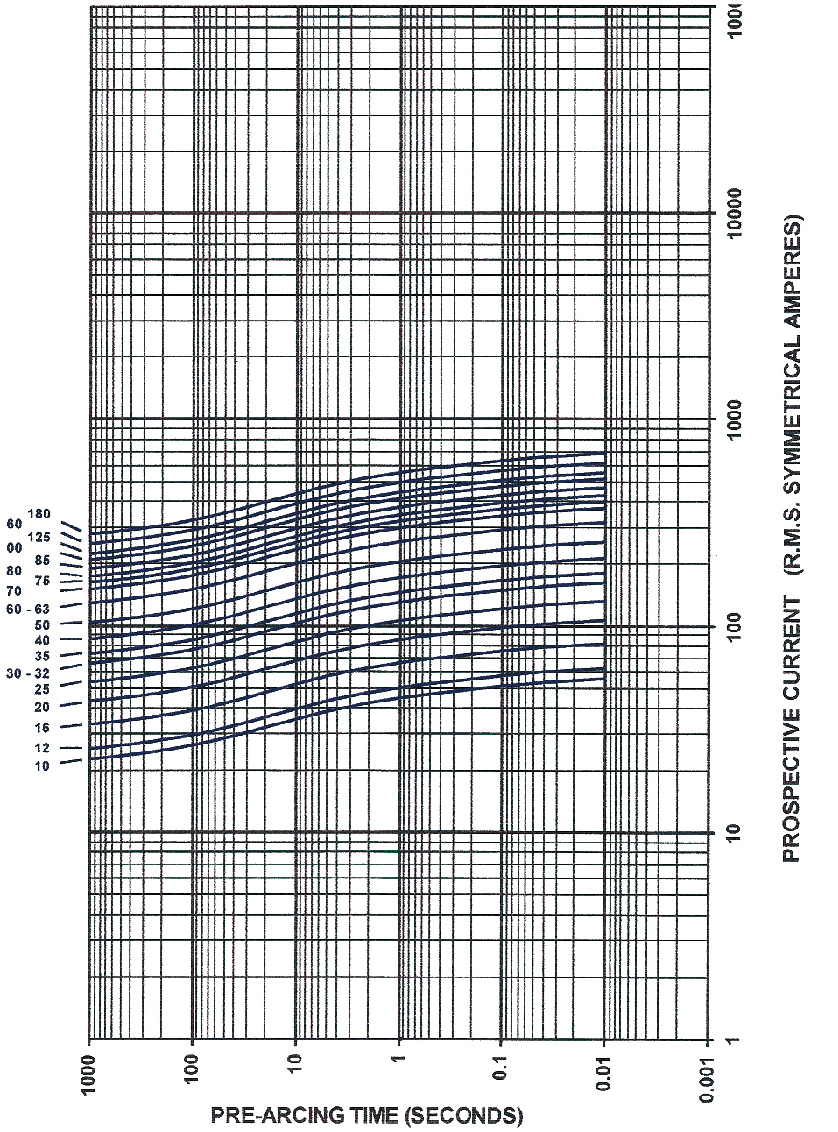

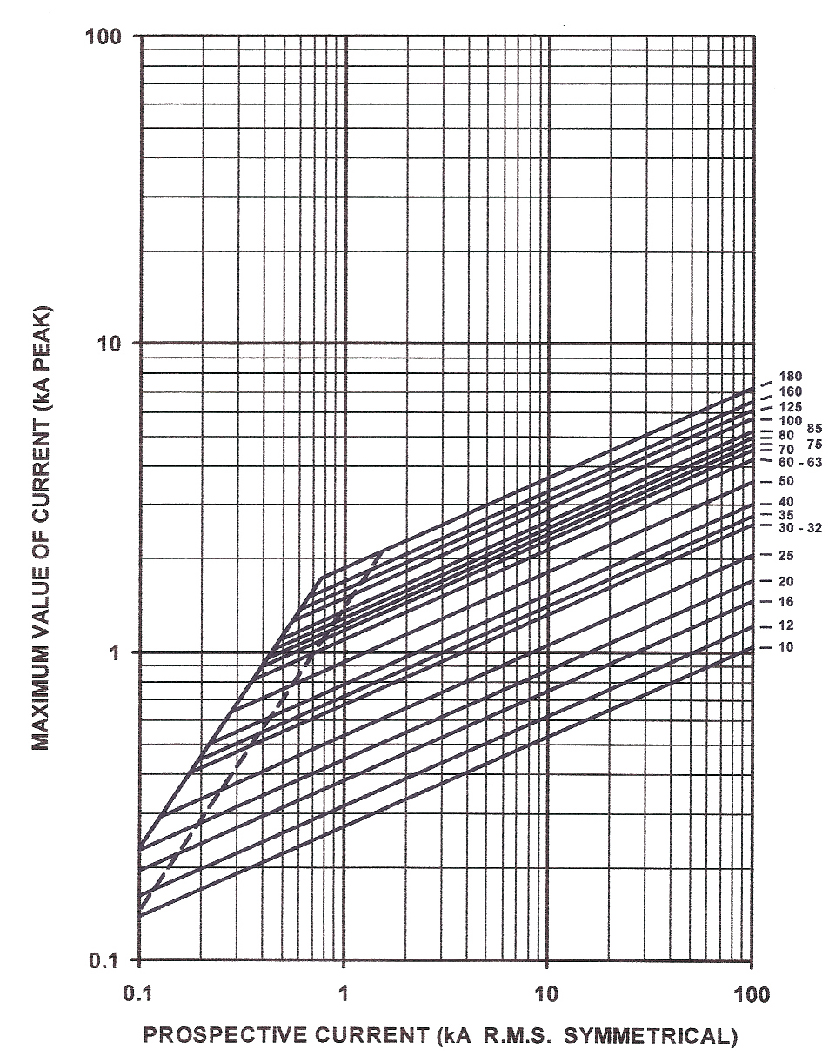

Images & Diagrams
