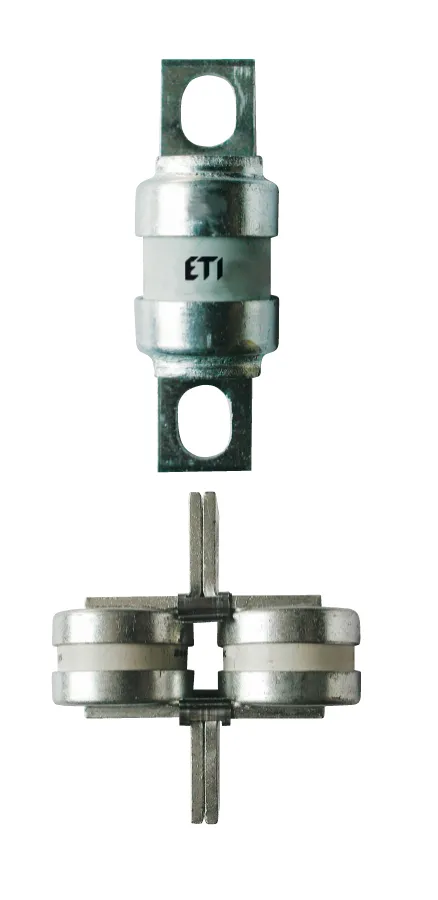

Fuse link BS17UQ/41/125A/240V 004750125

Specifications

ETI Code:
004750125
Description:
BS17UQ/41/125A/240V
Class name:
Fuse link
Type:
BS
Size:
BS17
Rated current (A):
125
Rated AC voltage (V):
240
Rated DC voltage (V):
120
Characteristics:
aR
Breaking capacity AC (kA):
100
Breaking capacity DC (kA):
100
Application:
For protection of semiconductor devices
Dimensions:
screw 42mm
Power dissipation (W):
12
Operating joule integral (A2s):
5.500
Standards:
IEC 60269-4, BS88 Part 4

Documents

Product

EAN code for a single product
3838895361886
Net weight of the product
0.031 kg
Customs tariff
85361090

Basic packaging

Basic packaging quantity
1
EAN code for a basic packaging
3838895361886
Basic packaging weight
0.031 kg
Basic packaging volume
0.002

Transport packaging

Transport packaging quantity
10
EAN code for a transport packaging
3838895361190
Transport packaging weight
0.48 kg
Transport packaging volume
0.025
Pallet quantity
16670
Pallet volume
41.675
Classification
EC002704
Class name
Cylindrical fuse
Breaking capacity
100kA
Nominal current
125A
Rated voltage
Other
Size
Other
Utilization category
Other
ETIM Classification – Version 7.0

Images & Diagrams

004750125Fuse link, BS17UQ/41/125A/240VUltra QuickSystem BSaR CharacteristicaR CharacteristicRated voltage 240VBS17Fuse links for semi conductor protection ULTRA QUICKFuse links ULTRA QUICKBS17UQ/41/125A/2Rated current 125AType BSSize BS17Product group Semiconductor ProtectionCharacteristics aRRated AC voltage 240VRated DC voltage 120VDimensions screw 42mmBreaking capacity AC 100kABreaking capacity DC 100kAPower dissipation 12WCatalogue Group Semiconductor ProtectionStandards IEC 60269-4, BS88 Part 4Operating joule integral 5.500A2sApplication For protection of semiconductor devicesFuse link BS17UQ/41/125A/240V BS BS17 125A 240V 120V aR
