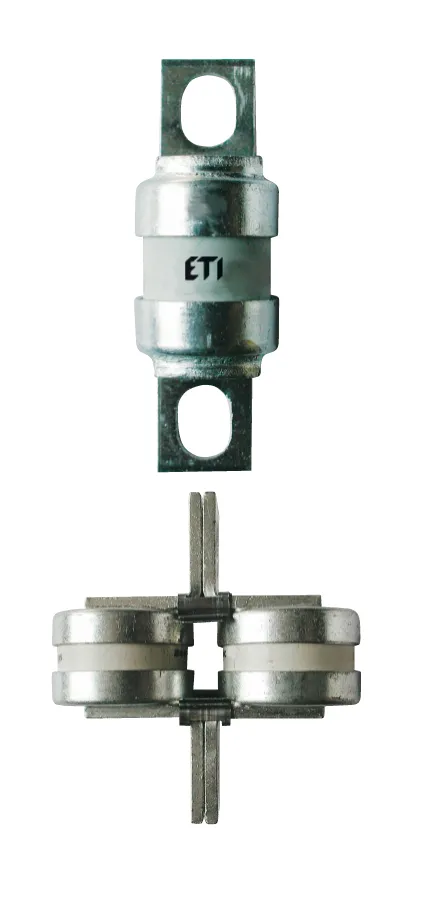

Fuse link BS38UQ/59/355A/240V 004750242

Specifications

ETI Code:
004750242
Description:
BS38UQ/59/355A/240V
Class name:
Fuse link
Type:
BS
Size:
BS38
Rated current (A):
355
Rated AC voltage (V):
240
Rated DC voltage (V):
120
Characteristics:
aR
Breaking capacity AC (kA):
100
Breaking capacity DC (kA):
100
Application:
For protection of semiconductor devices
Dimensions:
screw 59mm
Power dissipation (W):
30
Operating joule integral (A2s):
67.000
Standards:
IEC 60269-4, BS88 Part 4

Documents

Product

EAN code for a single product
3838895361954
Net weight of the product
0.17 kg
Customs tariff
85361090

Basic packaging

Basic packaging quantity
1
EAN code for a basic packaging
3838895361954
Basic packaging weight
0.17 kg
Basic packaging volume
0.014

Transport packaging

Transport packaging quantity
10
EAN code for a transport packaging
3838895361268
Transport packaging weight
1.96 kg
Transport packaging volume
0.143
Pallet quantity
4080
Pallet volume
58.344
Classification
EC002704
Class name
Cylindrical fuse
Breaking capacity
100kA
Nominal current
355A
Rated voltage
Other
Size
Other
Utilization category
Other
ETIM Classification – Version 7.0

Images & Diagrams

004750242Fuse link, BS38UQ/59/355A/240VUltra QuickSystem BSaR CharacteristicaR CharacteristicRated voltage 240VBS38Fuse links for semi conductor protection ULTRA QUICKFuse links ULTRA QUICKBS38UQ/59/355A/2Rated current 355AType BSSize BS38Product group Semiconductor ProtectionCharacteristics aRRated AC voltage 240VRated DC voltage 120VDimensions screw 59mmBreaking capacity AC 100kABreaking capacity DC 100kAPower dissipation 30WCatalogue Group Semiconductor ProtectionStandards IEC 60269-4, BS88 Part 4Operating joule integral 67.000A2sApplication For protection of semiconductor devicesFuse link BS38UQ/59/355A/240V BS BS38 355A 240V 120V aR
