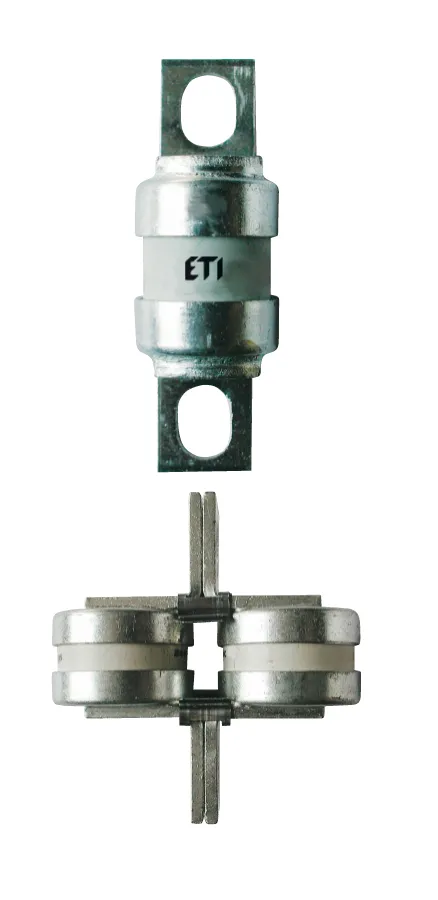

Fuse link BS38TUQ/59/800A/240V 004750353

Specifications

ETI Code:
004750353
Description:
BS38TUQ/59/800A/240V
Class name:
Fuse link
efuse:
1
Product group:
Semiconductor Protection
Type:
BS
Size:
BS38T
Rated current (A):
800
Rated AC voltage (V):
240
Rated DC voltage (V):
120
Characteristics:
aR
Breaking capacity AC (kA):
100
Breaking capacity DC (kA):
100
Application:
For protection of semiconductor devices
Dimensions:
screw 59mm
Power dissipation (W):
78
Operating joule integral (A2s):
335.000
Standards:
IEC 60269-4, BS88 Part 4

Documents

Product

EAN code for a single product

Net weight of the product
0.396  kg
Customs tariff
85361090
logis_net_width
36  mm
logis_net_height
84  mm
logis_net_depth
83  mm

Level 1 Packaging

Basic packaging quantity
5
EAN code for a basic packaging
3838895361336
Basic packaging weight
1.85  kg

Level 2 Packaging

Transport packaging quantity
10
EAN code for a transport packaging
3838895416043
Transport packaging weight
3.96  kg
Pallet quantity
2020
Classification
EC002704
Class name
Cylindrical fuse
Max. rated operation voltage Ue AC
240
Construction size
BS38T
Rated current
800
Rated voltage DC
120
Application
For protection of semiconductor devices
Size
Other
Rated voltage
Other
Utilization category
Other
Nominal current
800A
Breaking capacity
100kA
ETIM Classification – Version 7.0
