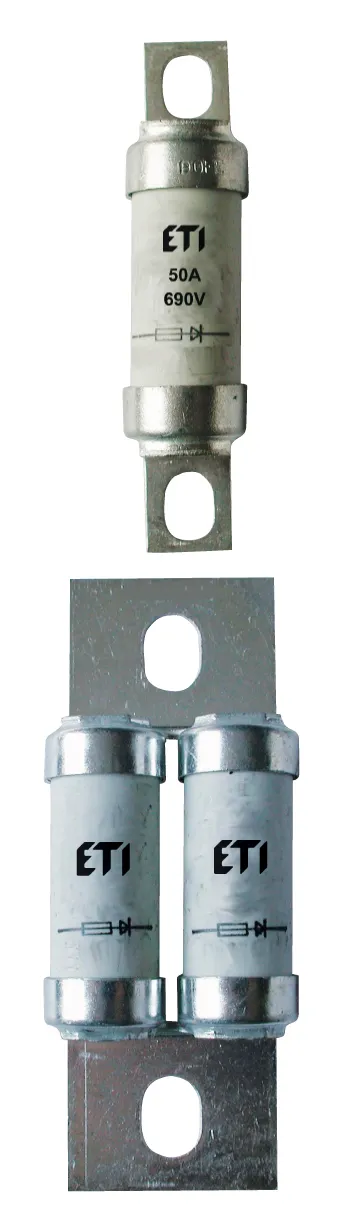

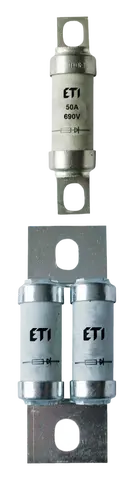

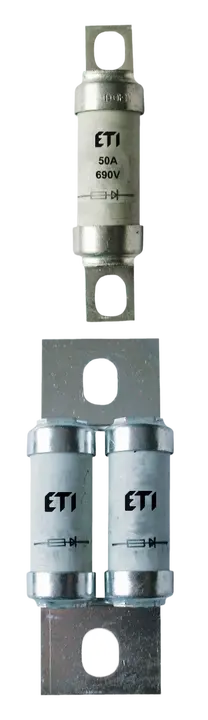

Fuse link BS8UQ/64/10A/690V 004750502 Obsolete
This product is obsolete and does not have a direct substitute, please contact our technical support in order to find a suitable replacement.
Specifications
- ETI Code:
- 004750502
- Description:
- *BS8UQ/64/10A/690V
- Class name:
- Fuse link
- efuse:
- 1
- Product group:
- Semiconductor Protection
- Type:
- BS
- Size:
- BS8
- Rated current (A):
- 10
- Rated AC voltage (V):
- 690
- Rated DC voltage (V):
- 350
- Characteristics:
- aR
- Breaking capacity AC (kA):
- 100
- Breaking capacity DC (kA):
- 100
- Application:
- For protection of semiconductor devices
- Power dissipation (W):
- 3
- Operating joule integral (A2s):
- 48
- Standards:
- IEC 60269-4, BS88 Part 4
Documents
Logistic Data
Product
- Customs tariff
- 85361010
- logis_net_width
- 9 mm
- logis_net_height
- 75 mm
- logis_net_depth
- 9 mm
Basic packaging
- Basic packaging quantity
- 5
- EAN code for a basic packaging
- 3838895416067
- Basic packaging weight
- 0.04 kg
Transport packaging
- Transport packaging quantity
- 10
- EAN code for a transport packaging
- 3838895361350
- Transport packaging weight
- 0.242 kg
- Pallet quantity
- 33060
ETIM Clasification
- Classification
- EC000035
- Class name
- Miniature fuse
- Rated current
- 10A
Characteristic
