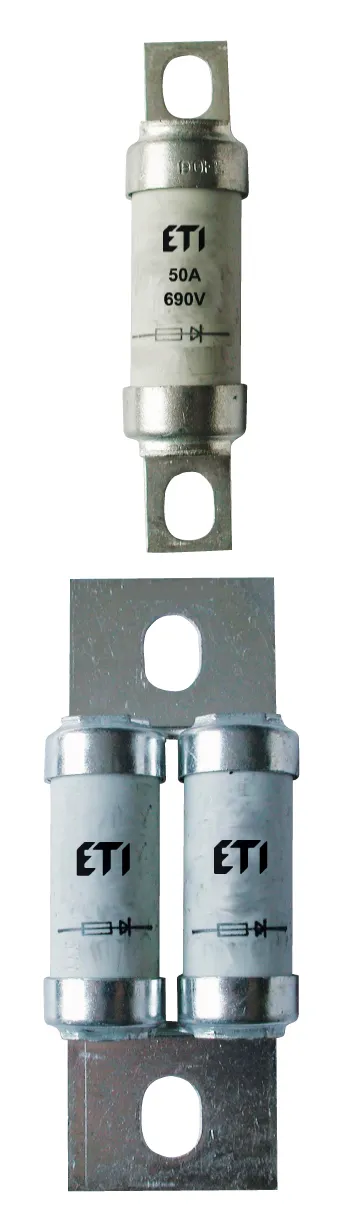

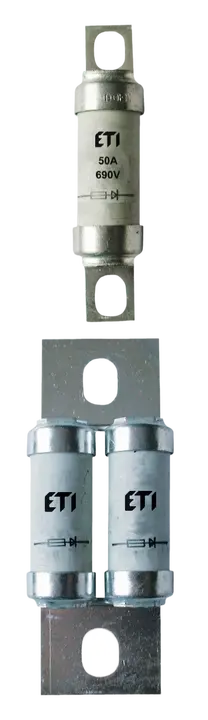

Fuse link BS8UQ/64/12A/690V 004750503

Specifications

ETI Code:
004750503
Description:
BS8UQ/64/12A/690V
Class name:
Fuse link
efuse:
1
Product group:
Semiconductor Protection
Type:
BS
Size:
BS8
Rated current (A):
12
Rated AC voltage (V):
690
Rated DC voltage (V):
350
Characteristics:
aR
Breaking capacity AC (kA):
100
Breaking capacity DC (kA):
100
Application:
For protection of semiconductor devices

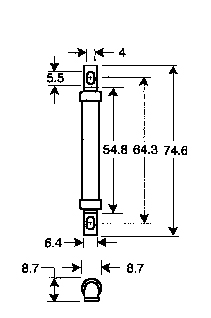

Dimensions:
screw 64mm
Power dissipation (W):
3

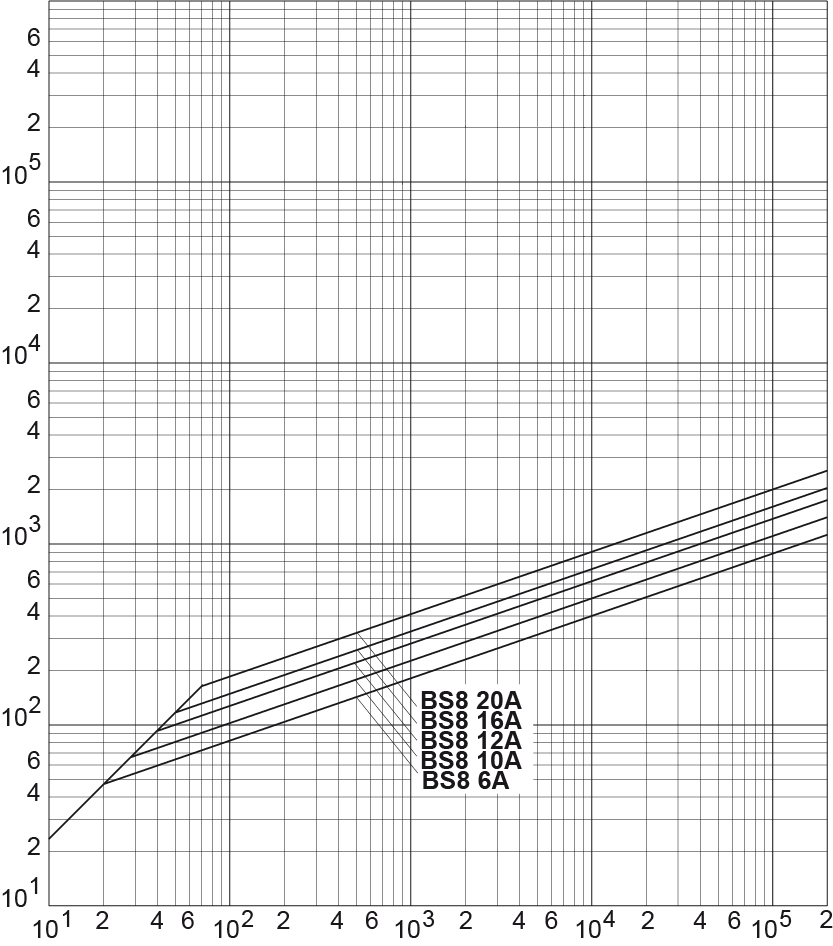

Operating joule integral (A2s):
65
Standards:
IEC 60269-4, BS88 Part 4

Documents

Product

EAN code for a single product

Net weight of the product
0.024  kg
Customs tariff
85361050
logis_net_width
9  mm
logis_net_height
75  mm
logis_net_depth
9  mm

Level 1 Packaging

Basic packaging quantity
5
EAN code for a basic packaging
3838895416074
Basic packaging weight
0.04  kg

Level 2 Packaging

Transport packaging quantity
10
EAN code for a transport packaging
3838895361367
Transport packaging weight
0.242  kg
Pallet quantity
33060
Classification
EC002704
Class name
Cylindrical fuse
Application
For protection of semiconductor devices
Max. rated operation voltage Ue AC
690
Construction size
BS8
Rated current
12
Rated voltage DC
350
Size
Other
Utilization category
Other
Nominal current
12A
Breaking capacity
100kA
ETIM Classification – Version 7.0

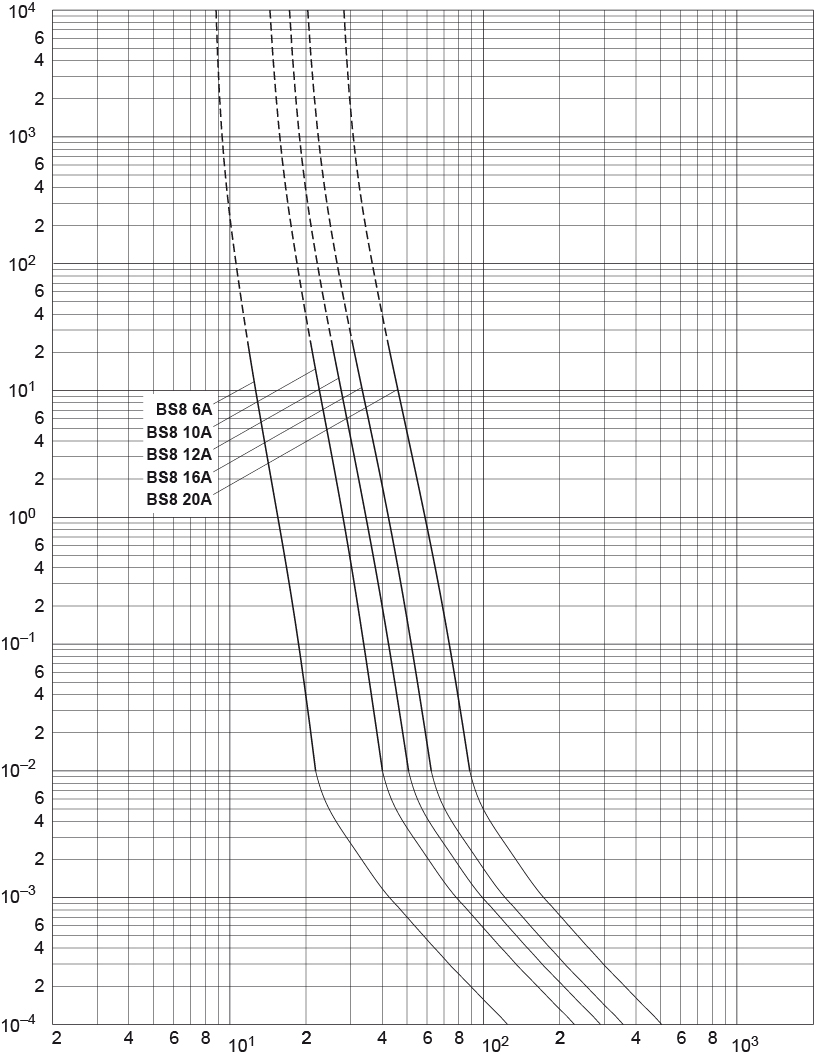

Images & Diagrams
