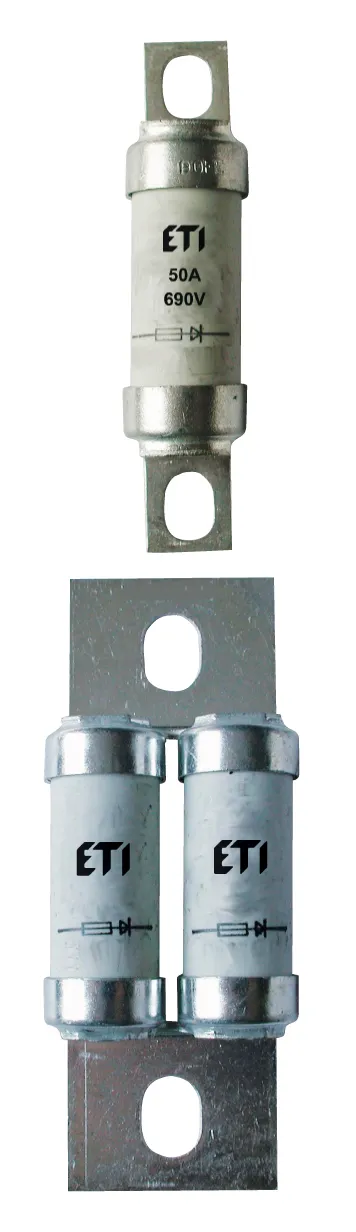

Fuse link BS17UQ/63/32A/690V 004750608

Specifications

ETI Code:: 004750608
Description:: BS17UQ/63/32A/690V
Class name:: Fuse link
Type:: BS
Size:: BS17
Rated current (A):: 32
Rated AC voltage (V):: 690
Rated DC voltage (V):: 350
Characteristics:: aR
Breaking capacity AC (kA):: 100
Breaking capacity DC (kA):: 100
Application:: For protection of semiconductor devices
Dimensions:: screw 63mm
Power dissipation (W):: 6,8
Operating joule integral (A2s):: 350
Standards:: IEC 60269-4, BS88 Part 4

Documents

Technical data catalogue

Logistic Data

Product

EAN code for a single product: 3838895416104
Net weight of the product: 0.211 kg
Customs tariff: 85361050

Basic packaging

Basic packaging quantity: 5
EAN code for a basic packaging: 3838895416104
Basic packaging weight: 0.211 kg
Basic packaging volume: 0.014

Transport packaging

Transport packaging quantity: 10
EAN code for a transport packaging: 3838895361428
Transport packaging weight: 0.585 kg
Transport packaging volume: 0.029
Pallet quantity: 13680
Pallet volume: 39.672

ETIM Clasification

Classification: EC002704
Class name: Cylindrical fuse
Breaking capacity: 100kA
Nominal current: 32A
Size: Other
Utilization category: Other

ETIM Classification – Version 7.0

Characteristic
