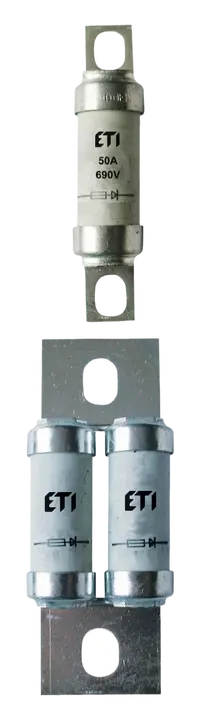

Fuse link BS38UQ/83/180A/690V 004750631 Obsolete

This product is obsolete and does not have a direct substitute, please contact our technical support in order to find a suitable replacement.

Specifications

ETI Code:
004750631
Description:
*BS38UQ/83/180A/690V
Class name:
Fuse link
efuse:
1
Product group:
Semiconductor Protection
Type:
BS
Size:
BS38
Rated current (A):
180
Rated AC voltage (V):
690
Rated DC voltage (V):
350
Characteristics:
aR
Breaking capacity AC (kA):
100
Breaking capacity DC (kA):
100
Application:
For protection of semiconductor devices
Power dissipation (W):
29
Operating joule integral (A2s):
23.000
Standards:
IEC 60269-4, BS88 Part 4

Documents

Product

EAN code for a single product
3838400053237
Net weight of the product
0.256  kg
Customs tariff
85361090
logis_net_width
38  mm
logis_net_height
113  mm
logis_net_depth
41  mm

Basic packaging

Basic packaging quantity
5
EAN code for a basic packaging
3838895361671
Basic packaging weight
1.2  kg

Transport packaging

Transport packaging quantity
10
EAN code for a transport packaging
3838895416296
Transport packaging weight
2.56  kg
Pallet quantity
3130
Classification
EC002704
Class name
Cylindrical fuse
Construction size
BS38
Max. rated operation voltage Ue AC
690
Rated current
180
Rated voltage DC
350
Application
For protection of semiconductor devices
Size
Other
Utilization category
Other
Nominal current
180A
Breaking capacity
100kA
ETIM Classification – Version 7.0
