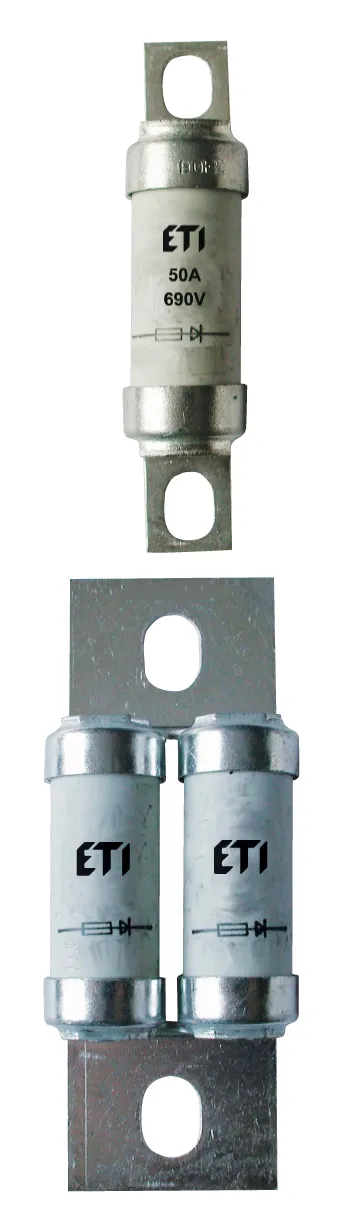

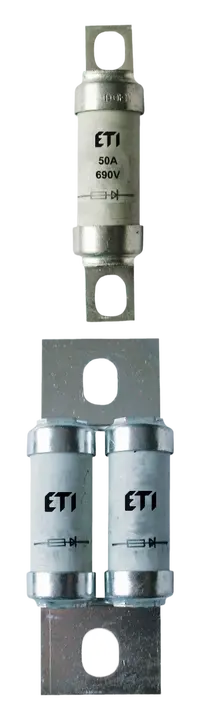

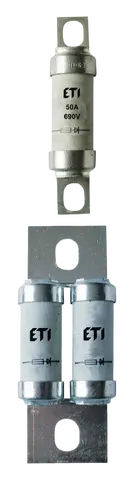

Fuse link BS38UQ/83/350A/690V 004750642

Specifications

ETI Code:
004750642
Description:
BS38UQ/83/350A/690V
Class name:
Fuse link
efuse:
1
Product group:
Semiconductor Protection
Type:
BS
Size:
BS38
Rated current (A):
350
Rated AC voltage (V):
690
Rated DC voltage (V):
350
Characteristics:
aR
Breaking capacity AC (kA):
100
Breaking capacity DC (kA):
100
Application:
For protection of semiconductor devices
Dimensions:
screw 83mm
Power dissipation (W):
57
Operating joule integral (A2s):
140.000
Standards:
IEC 60269-4, BS88 Part 4

Documents

Product

EAN code for a single product
3838400053275
Net weight of the product
0.256  kg
Customs tariff
85361090
logis_net_width
38  mm
logis_net_height
113  mm
logis_net_depth
41  mm

Level 1 Packaging

Basic packaging quantity
5
EAN code for a basic packaging
3838895361718
Basic packaging weight
1.2  kg

Level 2 Packaging

Transport packaging quantity
10
EAN code for a transport packaging
3838895416333
Transport packaging weight
2.56  kg
Pallet quantity
3130
Classification
EC002704
Class name
Cylindrical fuse
Application
For protection of semiconductor devices
Max. rated operation voltage Ue AC
690
Construction size
BS38
Rated current
350
Rated voltage DC
350
Size
Other
Utilization category
Other
Nominal current
350A
Breaking capacity
100kA
ETIM Classification – Version 7.0
